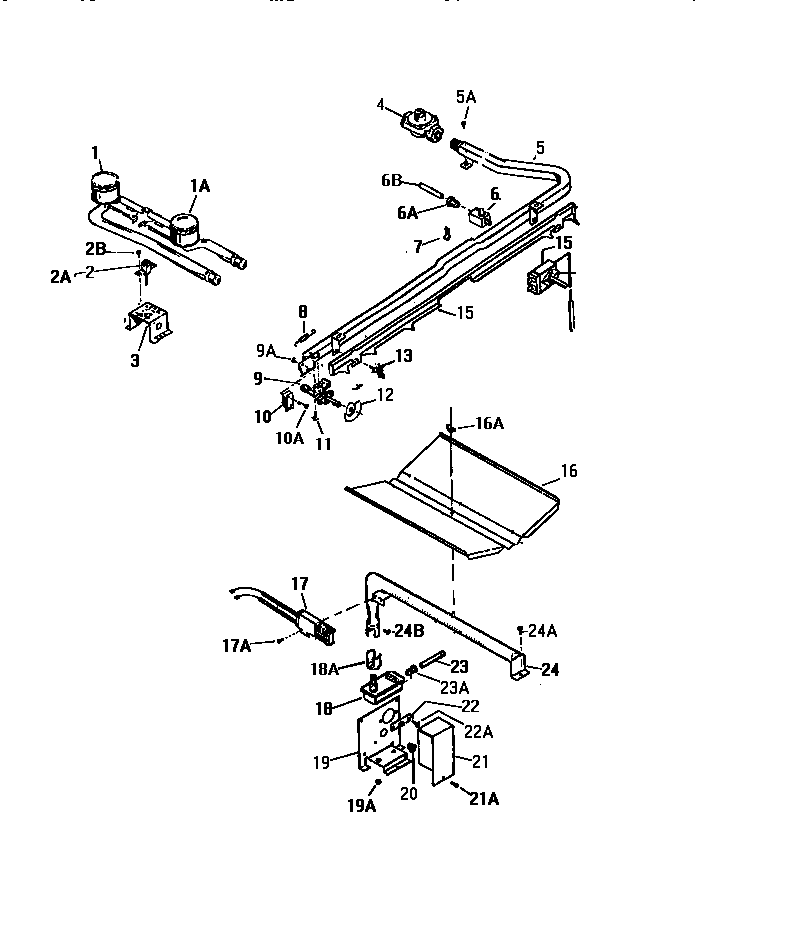

GF830HXH3 04 – BURNER ASSEMBLY

Products

Position	Product
1A	WCI Q301861
1	WCI Q301865
2A	WCI Q301864
2	WCI Q301862
3	WCI Q301866
4	5308007974 Frigidaire Pressure Regulator
5	WCI Q301855
6	VALVE
6A	BUT - 3/8 LOXIT
7	CLIP, CAP. TUBE
8	WCI Q301869
9	WCI Q301873
9A	NUT
10A	SCREW
10	WCI Q301874
11	WCI Q310002
12	WCI A22002000
13	WCI Q301839
14	WCI Q301857
15	WCI Q301858
16	WCI A9010000
16A	WING NUT
17	5303935066 Frigidaire Oven Flat Igniter 17" Leads
17A	SCREW
18A	SHUTTER
18	WCI Q301871
19A	WCI AP265008
19	SUPPORT
20	WCI AP074001
21	VALVE COVER
22	TERMINAL BLOCK
23	WCI Q301867
23A	NUT
24B	SCREW
24A	WCI AP051056
24	BURNER
