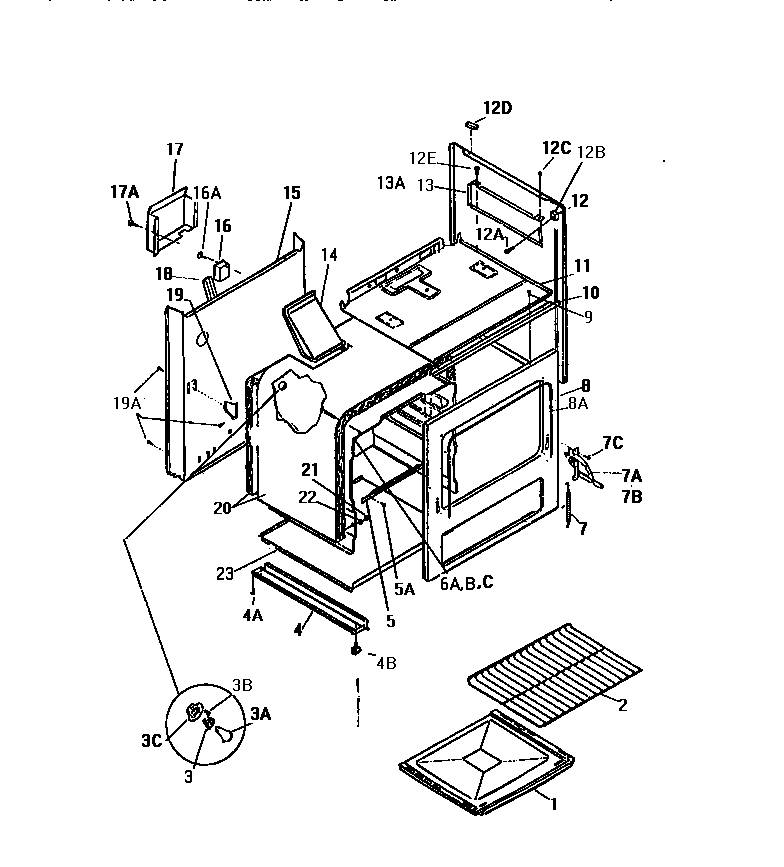

GF830HXV3 05 – OVEN CAVITY & BODY

Products

Position	Product
1	WCI Q301977
2	WCI AP301046
3C	WCI Q310063
3	WCI Q310061
3A	WCI Q63749
4B	WCI AP059009
4	BASE RAIL
5	SUPPORT, BTM
6C	WCI Q310085
6A	WCI Q301972
6B	WCI Q301973
6	WCI Q301971
7	SPRING
7C	5304500008 Frigidaire Oven Screw
7B	318348801 Frigidaire Oven Left Side Door Hinge
7A	WCI A96068000
8	WCI Q301967
8A	WCI AP326052
10	WCI A74076000
11	WCI Q301968
12B	WCI Q310084
12	BODY PANEL, FR AV
12D	WCI Q301831
12C	WCI AP172002
13	HEAT SHIELD-RH
13A	HEAT SHIELD, LH (NON-ILLUSTRATED)
14	WCI A92049000
15	WCI A5087000
16	WCI Q301950
17	COVER, MODULE
18	WCI Q310003
19A	WCI AP051056
19	WCI A74060000
20	WCI Q134234
21	WCI AP051045
22	WCI AP391021
23	PANEL, BOTTOM
