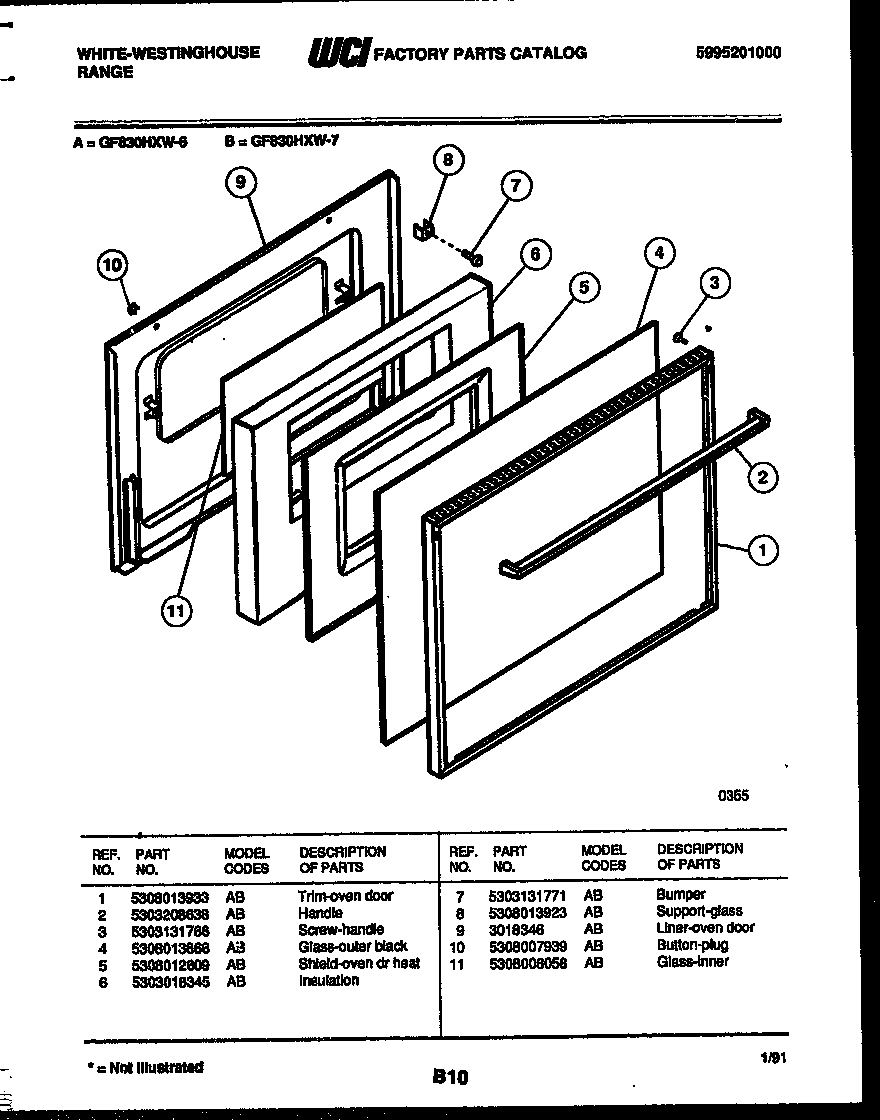

GF830HXW6 04 – DOOR PARTS

Written by

Products

Position	Product
1	TRIM DOOR
2	HANDLE
3	SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
4	GLASS OUTER
5	SHIELD OVEN DR HEAT
6	WCI 5303018345
7	BUMPER-WINDOW BOT.
8	WCI 5308013923
9	LINER-OVEN DOOR
10	PLUG, DOOR LINER
11	WCI 5308008058
