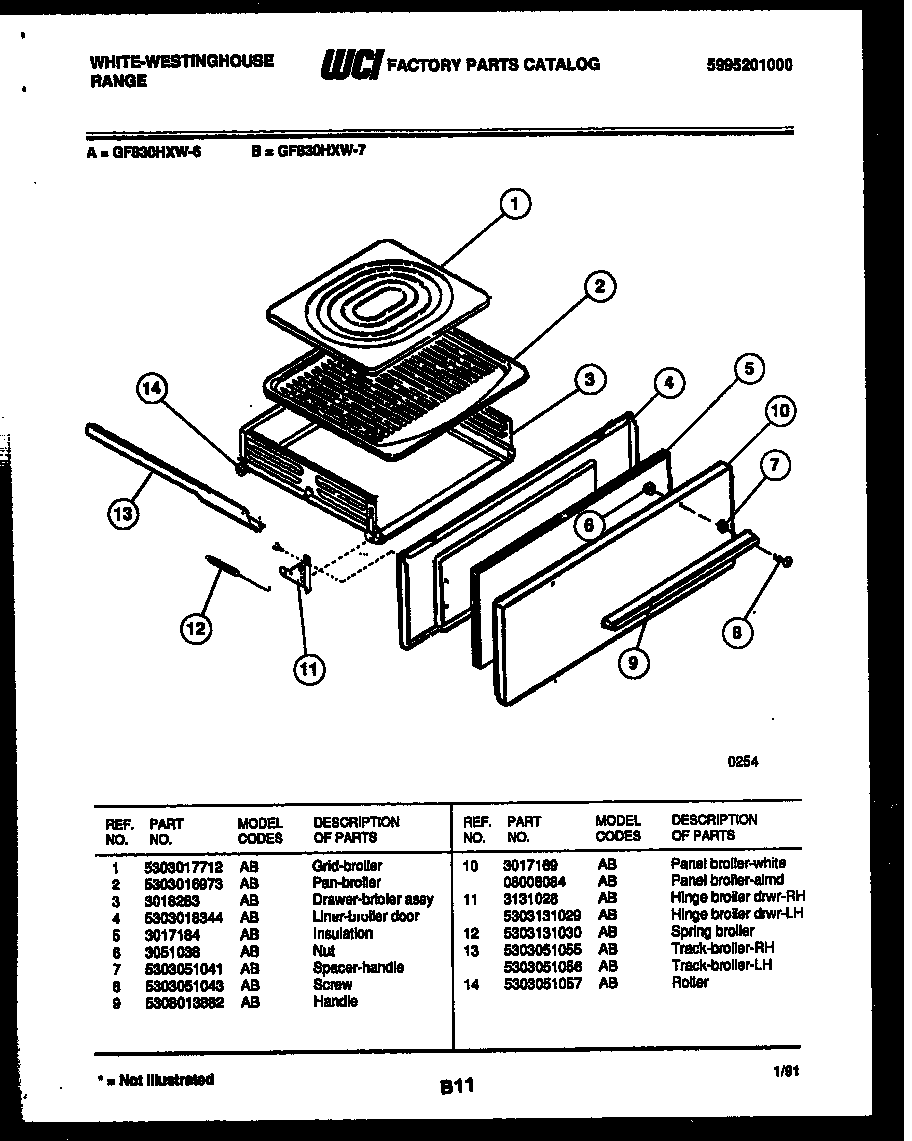

GF830HXW6 05 – BROILER DRAWER PARTS

GF830HXW6 05 – BROILER DRAWER PARTS

Written by

in

GF830HXW6 05 – BROILER DRAWER PARTS

Products

Position	Product
1	WCI 5303017712
2	WCI 5303016973
3	5304504568 Frigidaire Drawer Assembly
4	WCI 5303018344
5	WCI 3017184
6	5303013272 Frigidaire Oven Nut
7	SPACER HANDLE
8	5303292012 Frigidaire Oven Screw
9	WCI 5308013882
10	PANEL – BLACK
11A	HINGE – LH
11	HINGE – RH
12	SPRING
13	TRACK ASSY-RH
13A	TRACK ASSY-LH
14	ROLLER
