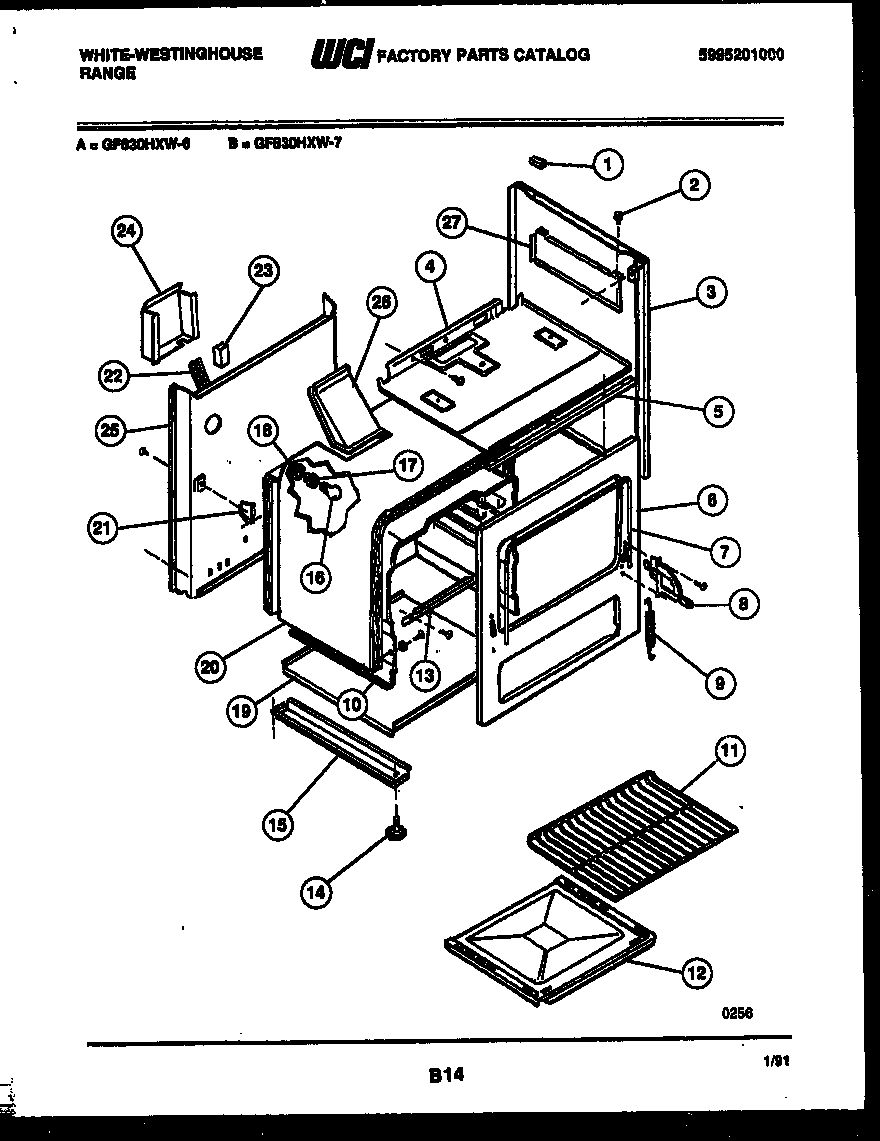

GF830HXW7 07 – BODY PARTS

Products

Position	Product
*29991	WCI 191S019F266
*29990	CLIP,BODYSIDE
*29990	ANTI-TIP KIT
1	GROMMET-MAINTOP
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
4	WCI 3017174
5	SUPPORT CONTROL PNL
6	WCI 3205578
7	DOOR SEAL
8	HINGE ASSY-RH
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING-OVEN DOOR (2)
10	OVEN LINER-SIDE RH
10A	OVEN LINER-SIDE LH
10C	WCI 3018286
10B	WCI 3018347
11	OVEN RACK (2)
12	WCI 3018282
13	SUPPORT-OVEN BOTTOM
14	LEG LEVELLER (4)
15	RAIL-BASE
16	316538904 Frigidaire Oven Lamp Light
17	316116400 Frigidaire Oven Light Socket
18	WCI 3051511
19	WCI 3011645
20A	WCI 3017172
20	WCI 3017171
21	SUPPORT-REAR OVN (2)
22	CHANNEL – MAIN WIRE
23	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
24	WCI 08013953
25	WCI 5303013340
26	WCI 3017173
27A	SHIELD-BURNER BOX LH
27	SHIELD-BURNER BOX RH
