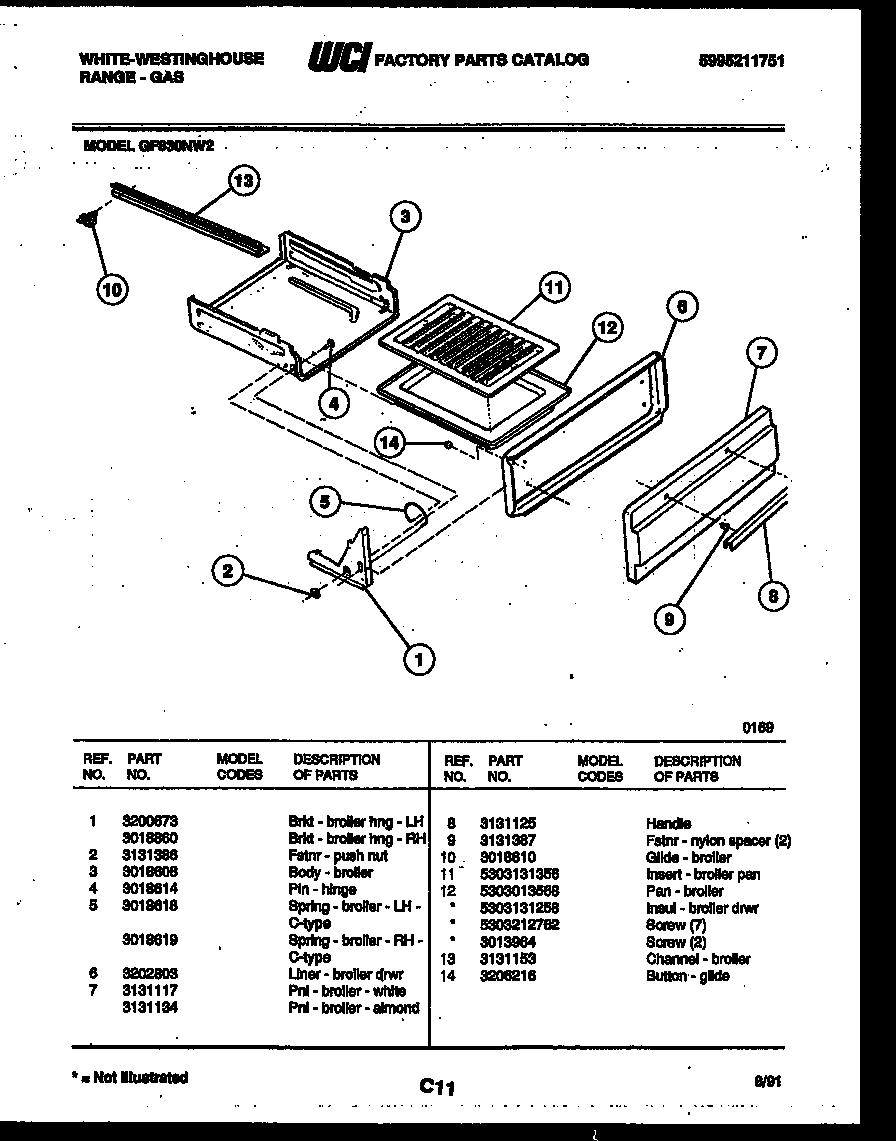

GF830ND2 04 – BROILER DRAWER PARTS

GF830ND2 04 – BROILER DRAWER PARTS

Written by

in

GF830ND2 04 – BROILER DRAWER PARTS

Products

Position	Product
1	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5	WCI 3018618`
5	SPRING-BROILER, RH
6	WCI 3202803
7	PANEL – BROILER ALMD
8	WCI 3131125
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 5303131356
12A	INSULATION, BROILER DRAWER
12	PAN-BROILER
12C	SCREW-PNL ASSY (2)
12B	5303300265 Frigidaire Oven Screw
13	WCI 3131153
14	WCI 3206216
