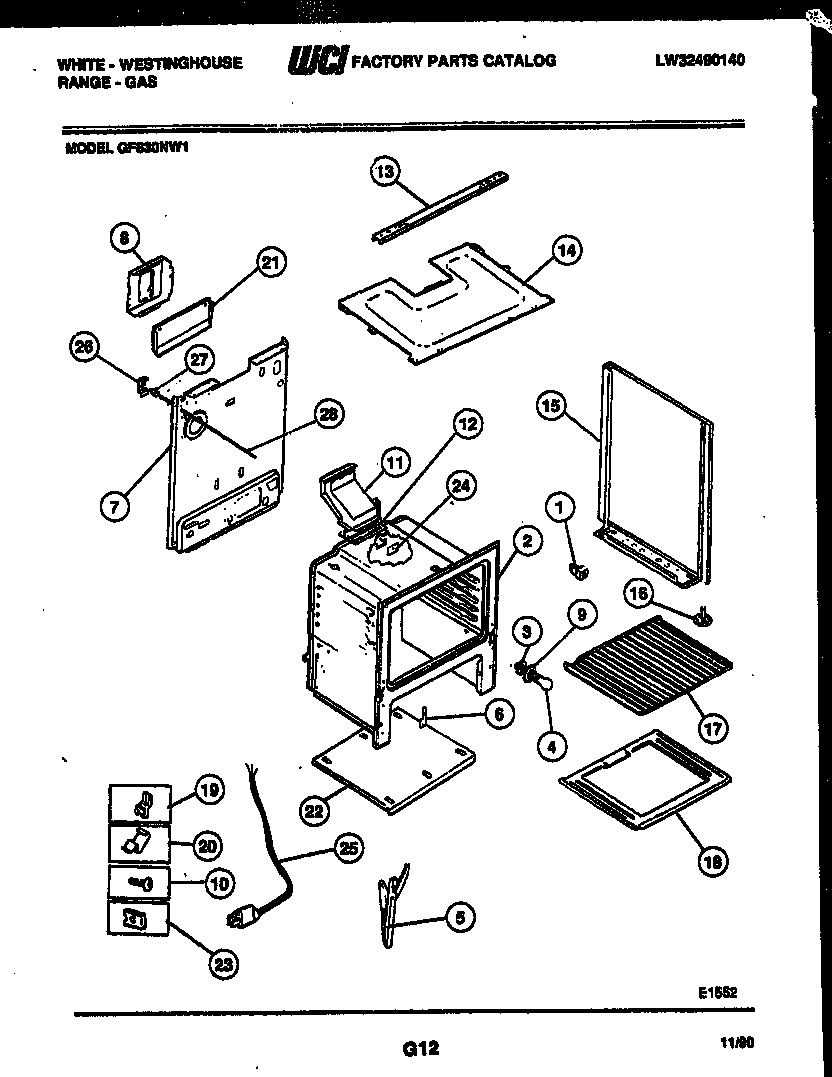

| *39159 | DIAGRAM, WIRING (NOT FOR PURCHASE) |
| 1 | SPACER-BODYSIDE, (8) |
| 3 | 316116400 Frigidaire Oven Light Socket |
| 4 | 316538904 Frigidaire Oven Lamp Light |
| 5 | CHAN-DOOR HINGE (2) |
| 6 | WCI 3131570 |
| 7 | WCI 3203082 |
| 8 | WCI 3131660 |
| 9 | WCI 3051511 |
| 10 | 316282700 Frigidaire Oven Screw |
| 11 | WCI 3131904 |
| 12 | 316542102 Frigidaire Flue Gasket |
| 13 | CHANNEL-BURNER BOX |
| 14 | BURNER BOX BOTTOM |
| 15 | PNL-BODYSIDE RH-WHITE |
| 15A | PNL-BODYSIDE LH-WHITE |
| 16 | SCREW-LEVELING |
| 17 | 316067902 Frigidaire Oven Rack |
| 18C | INSUL - OVEN BACK (NON-ILLUSTRATED) |
| 18A | INSULATION, OVEN WRAPPER |
| 18B | WCI 3131252 |
| 18 | BTTM-OVEN |
| 19 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 19A | WCI 08067961 |
| 20 | 316539800 Frigidaire Oven Retainer |
| 21A | 3131903 Frigidaire Door/Drawer Bumper |
| 21B | 316064600 Frigidaire Oven Support |
| 21 | WCI 3131348 |
| 22A | ANTI-TIP KIT (NOT ILLUSTRATED) |
| 22B | COVER-POWER CORD, (NON-ILLUSTRATED) |
| 22 | WCI 3131180 |
| 23 | 3203010 Frigidaire Clip |
| 23A | COVER-OVEN FRONT |
| 24A | SHIELD-FLUE, (NON-ILLUSTRATED) |
| 24B | SHIELD-TOP (NON-ILLUSTRATED) |
| 24 | COVER-IGNITOR |
| 25 | 5304515659 Frigidaire Oven Power Cord |
| 26 | WCI 5303131289 |
| 27 | SWITCH-OVEN LITE DOOR |
| 28 | WCI 5303209316 |
