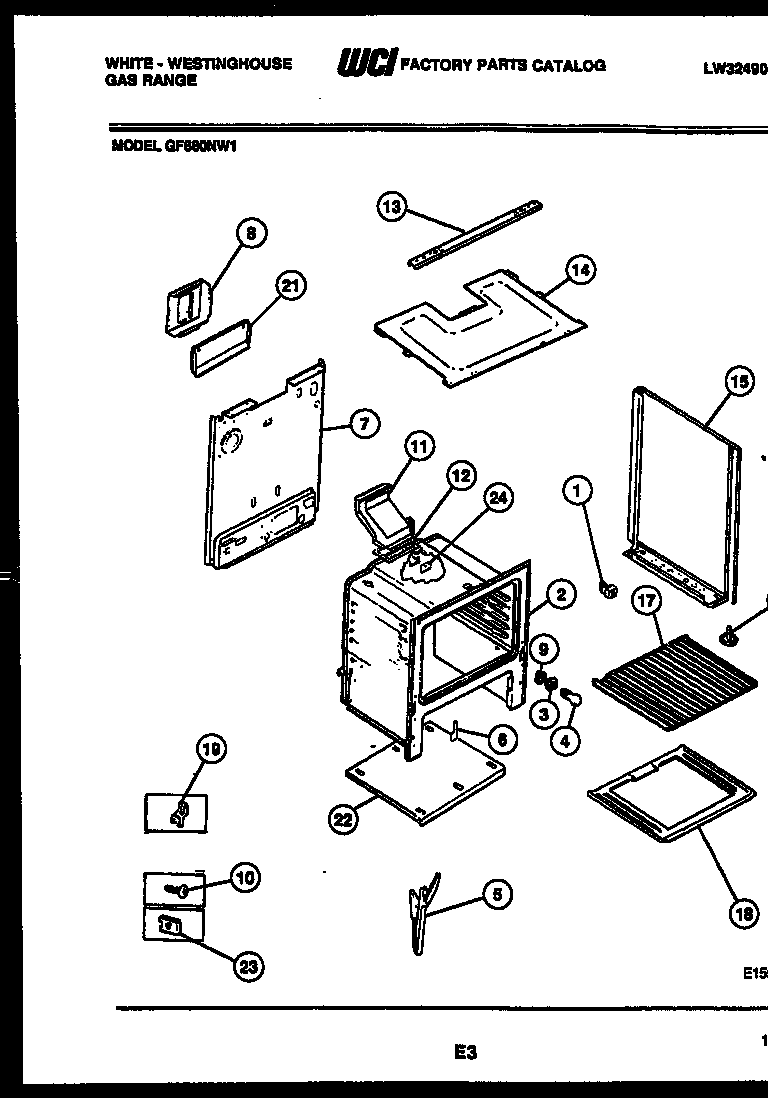

GF860NW1 06 – BODY PARTS

Products

PositionProduct
*32043SHIELD-TOP (NON-ILLUSTRATED)
*32042SHIELD-FLUE, (NON-ILLUSTRATED)
*32043WCI 3131252
*32043DIAGRAM, WIRING (NOT FOR PURCHASE)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6WCI 3131570
6A5304515659 Frigidaire Oven Power Cord
7WCI 3203082
8WCI 3131660
9WCI 3051511
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15APNL-BODYSIDE LH-WHITE
15PNL-BODYSIDE RH-WHITE
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18AINSULATION, OVEN WRAPPER
18BTTM-OVEN
19AWCI 08067961
195303284616 Frigidaire Range Bulb Clip Thermostat
21B316064600 Frigidaire Oven Support
21A3131903 Frigidaire Door/Drawer Bumper
21WCI 3131348
22WCI 3131180
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22AANTI-TIP KIT (NOT ILLUSTRATED)
233203010 Frigidaire Clip
23ACOVER-OVEN FRONT
24COVER-IGNITOR
