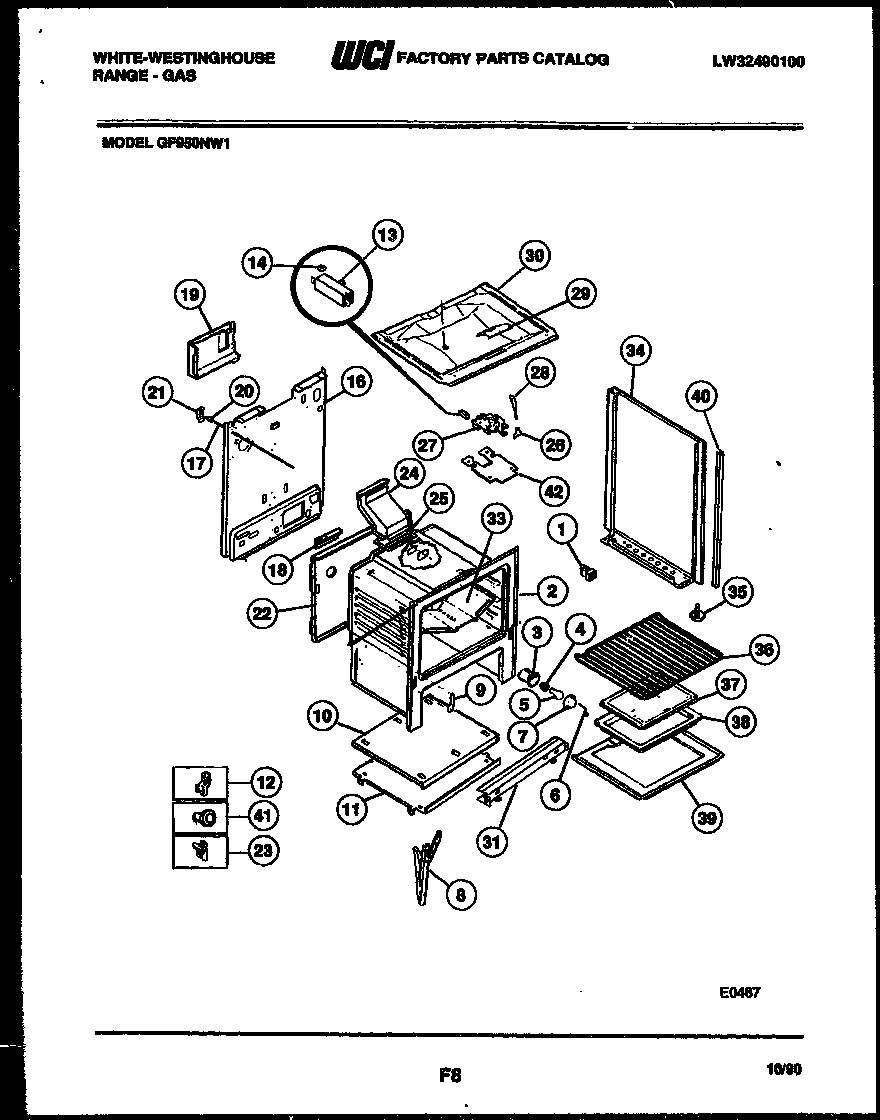

GF950NW1 06 – BODY PARTS

Products

PositionProduct
*38261SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*38261ANTI-TIP KIT (NOT ILLUSTRATED)
*38262INSULATION, OVEN TOP
*38262DIAGRAM WIRING (NOT FOR PURCHASE.)
*38261WCI 3131252
*38262WCI 3018702
1SPACER-BODYSIDE, (8)
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10WCI 3131951
11WCI 3131313
11AWCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14FSTNR-PUSH ON
14B5304515659 Frigidaire Oven Power Cord
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
19WCI 3131590
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25BWCI 08013188
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
33WCI 3200836
34APNL-BODYSIDE RH-WHITE
34PNL-BODYSIDE LH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39A316064600 Frigidaire Oven Support
39EINSULATION, OVEN WRAPPER
39FWCI 08068018
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39BTTM-OVEN
39BWCI 08067961
39D08067973 Frigidaire 0 Insulation
40TRIM – VERTICAL B/S (2)
413131903 Frigidaire Door/Drawer Bumper
41B316282700 Frigidaire Oven Screw
41A3051162 Frigidaire Oven Range Front Broiler Drawer Glide
42SHIELD-OVN TOP
