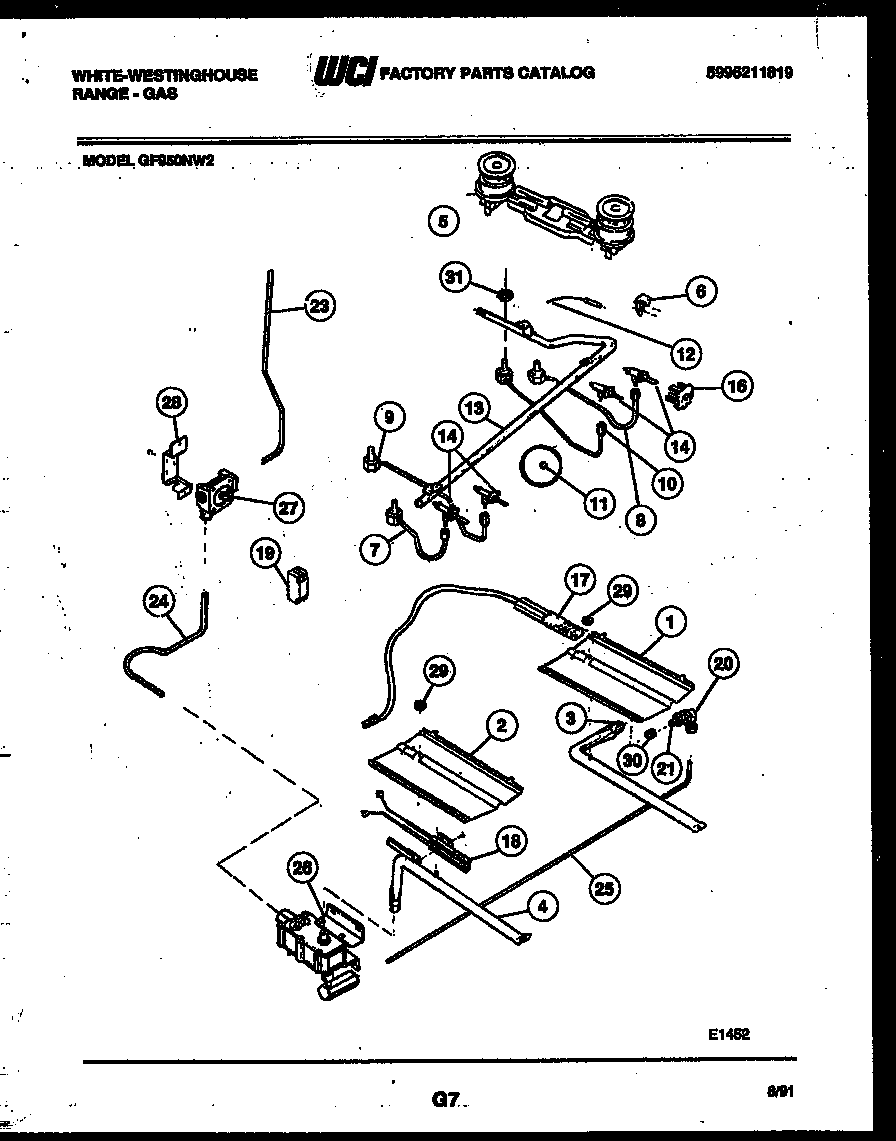

GF950NW2 05 – BURNER, MANIFOLD AND GAS CONTROL

GF950NW2 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GF950NW2 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*52315BRACKET BURNER MTG
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
63016993 Frigidaire Oven Retainer
7TUBE-BURNER, LF
8TUBE-BURNER, RF
9TUBE-BURNER, LR
10TUBE-BURNER, RR
11316048200 Frigidaire Oven Screw
12IGNITER-TOP BURNER, BASE, (2)
13WCI 5303271375
14VALVE TOP-3 POS
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 5303208640
21NUT
23TUBE-ALUM 3/8 REG/MANIFOLD PIPE
24TUBE-VALVE TO REGUL
25TUBE-VALVE TO MIXER ELBOW
265303208499 Frigidaire Safety Gas Valve
26AWASHER-BLACK
275303935125 Frigidaire Pressure Regulator
28316091600 Frigidaire Oven Bracket
295303013272 Frigidaire Oven Nut
30WCI 08068015
31NUT, SPECIAL
