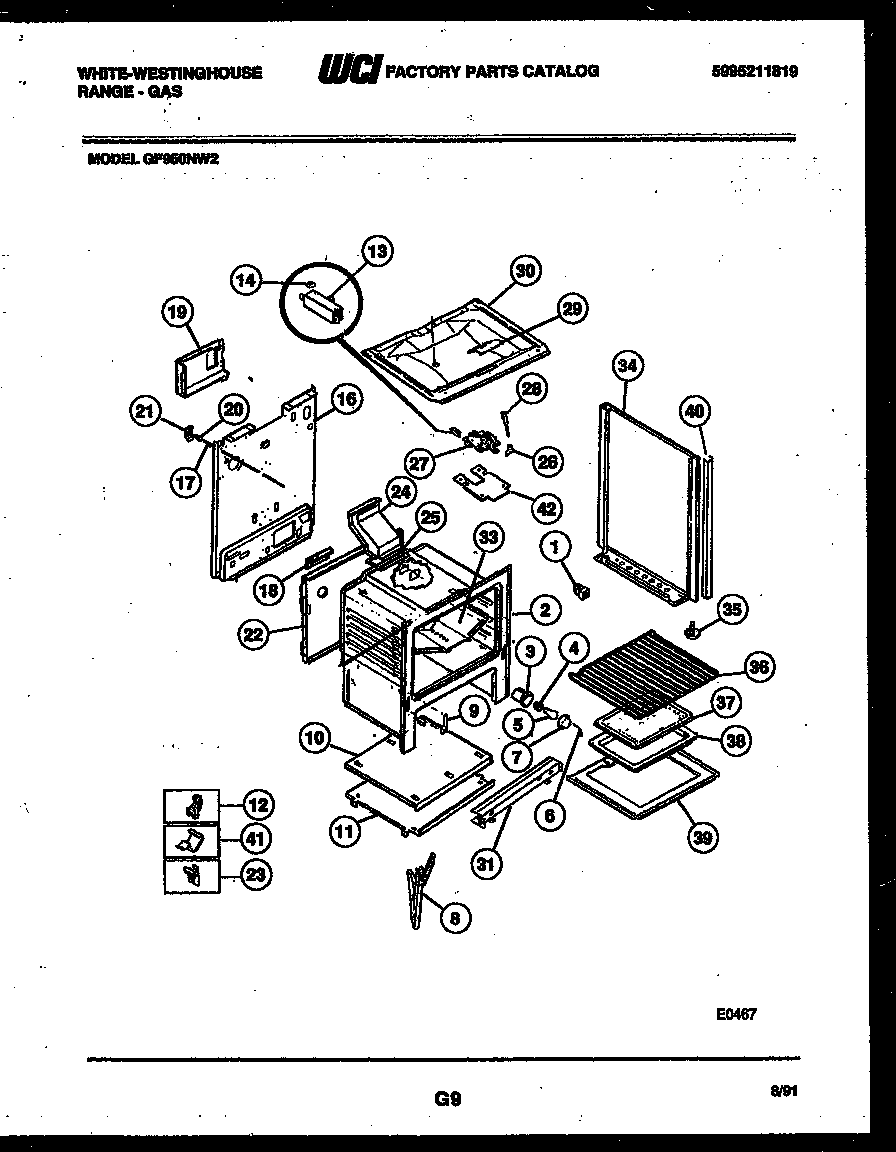

GF950NW2 06 – BODY PARTS

Products

PositionProduct
*52323INSULATION, OVEN TOP
*52323ANTI-TIP KIT (NOT ILLUSTRATED)
*52323SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10SHIELD-HEAT UPPER
11WCI 3131313
11AWCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
14B5304515659 Frigidaire Oven Power Cord
16WCI 3203082
17WCI 5303209316
19WCI 3131590
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
33WCI 3200836
34APNL-B/S-RH-WHITE
34PNL-B/S-LH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39D08067973 Frigidaire 0 Insulation
39BTTM-OVEN
39BWCI 08067961
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39EINSULATION, OVEN WRAPPER
39A316064600 Frigidaire Oven Support
39FWCI 08068018
40TRIM – VERTICAL B/S (2)
413131903 Frigidaire Door/Drawer Bumper
41A3051162 Frigidaire Oven Range Front Broiler Drawer Glide
41B316282700 Frigidaire Oven Screw
42SHIELD-OVN TOP
42DIAGRAM WIRING (NOT FOR PURCHASE.)
