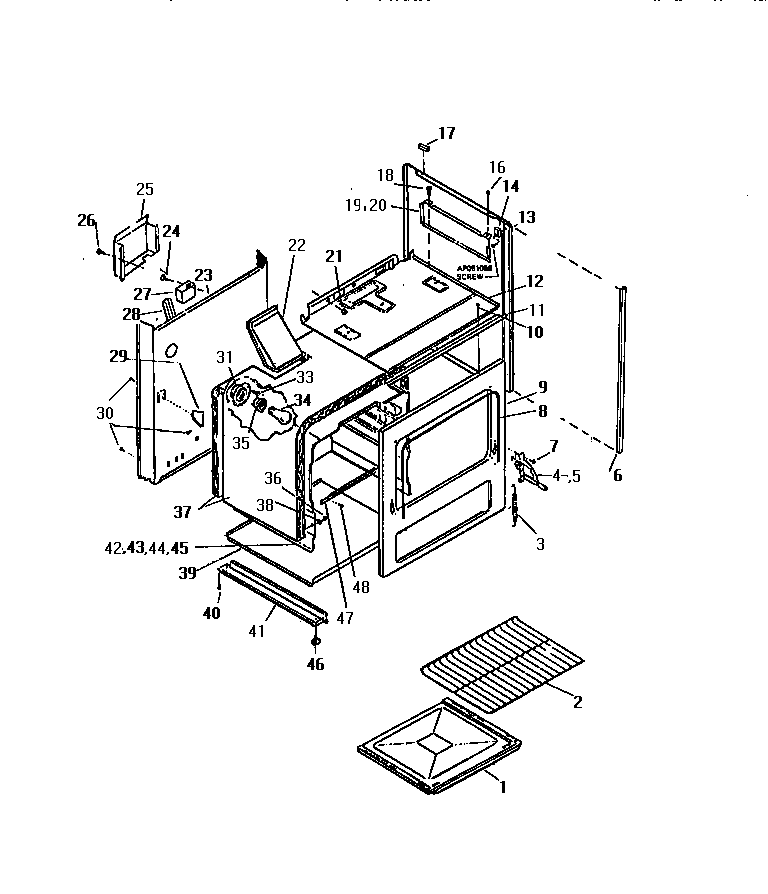

GF970HXD0 05 – BODY

Products

Position	Product
1	WCI Q301977
2	WCI AP301046
3	SPRING
4	WCI A96068000
5	318348801 Frigidaire Oven Left Side Door Hinge
6	WCI Q310079
7	5304500008 Frigidaire Oven Screw
8	WCI AP326052
9	WCI Q301967
11	WCI A74076000
12	WCI Q301107
13	BOTTOM PANEL, LH & RH (ALMOND)
14	WCI Q310084
16	WCI AP172002
17	WCI Q301831
19	HEAT SHIELD-RH
20	HEAT SHIELD, LH (NON-ILLUSTRATED)
21	WCI AP074001
22	WCI A92049000
23	WCI A5087000
25	COVER, MODULE
27	WCI Q301950
28	WCI Q310003
29	WCI A7406000
31	WCI Q310063
34	WCI Q63749
35	WCI Q310061
36	WCI AP051045
37	WCI Q134234
38	WCI AP391021
39	PANEL, BOTTOM
41	BASE RAIL
42	WCI Q301979
43	WCI Q301980
44	WCI Q301981
45	WCI Q310062
46	LEVELING LEG
47	SUPPORT, BTM
48	WCI AP051056
