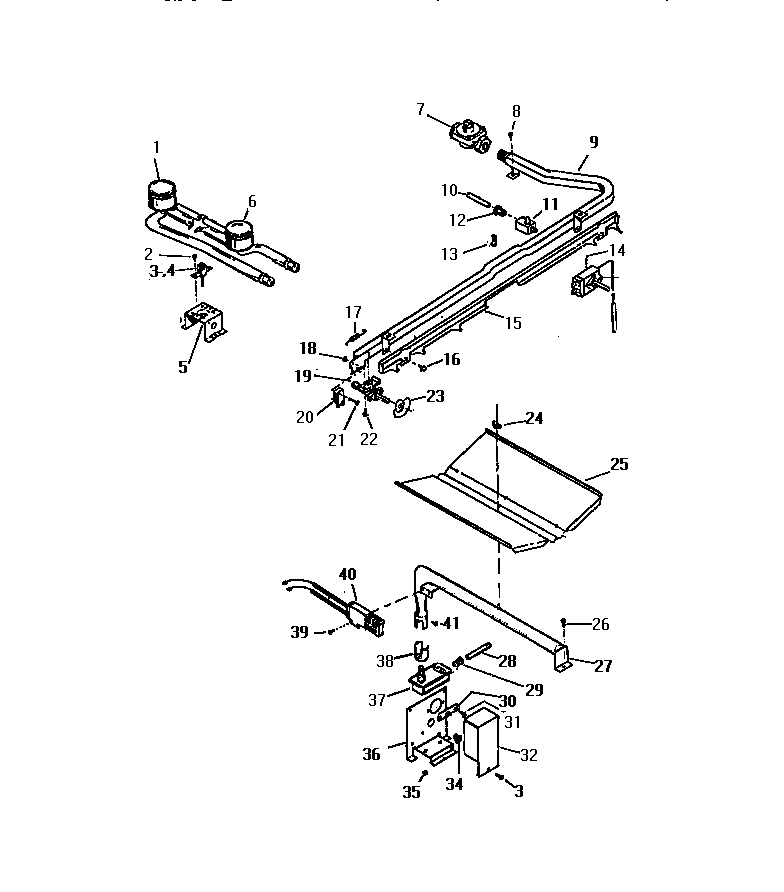

GF970HXD1 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301865
3	WCI Q301862
4	WCI Q301864
5	WCI Q301866
6	WCI Q301861
7	5308007974 Frigidaire Pressure Regulator
9	WCI Q301855
11	VALVE
13	CLIP, CAP. TUBE
14	WCI Q301858
15	WCI Q301857
16	WCI Q301839
17	WCI Q301869
18	NUT
19	WCI Q301870
20	WCI Q301874
21	SCREW
22	WCI Q310002
23	WCI Q301875
24	WING NUT
25	WCI A9010000
27	BURNER
28	WCI Q301867
29	BUT - 3/8 LOXIT
30	TERMINAL BLOCK
32	VALVE COVER
33	WCI AP051056
34	WCI AP074001
35	WCI AP265008
36	SUPPORT
37	WCI Q301871
38	SHUTTER
39	SCREW
40	5303935066 Frigidaire Oven Flat Igniter 17" Leads
41	SCREW
