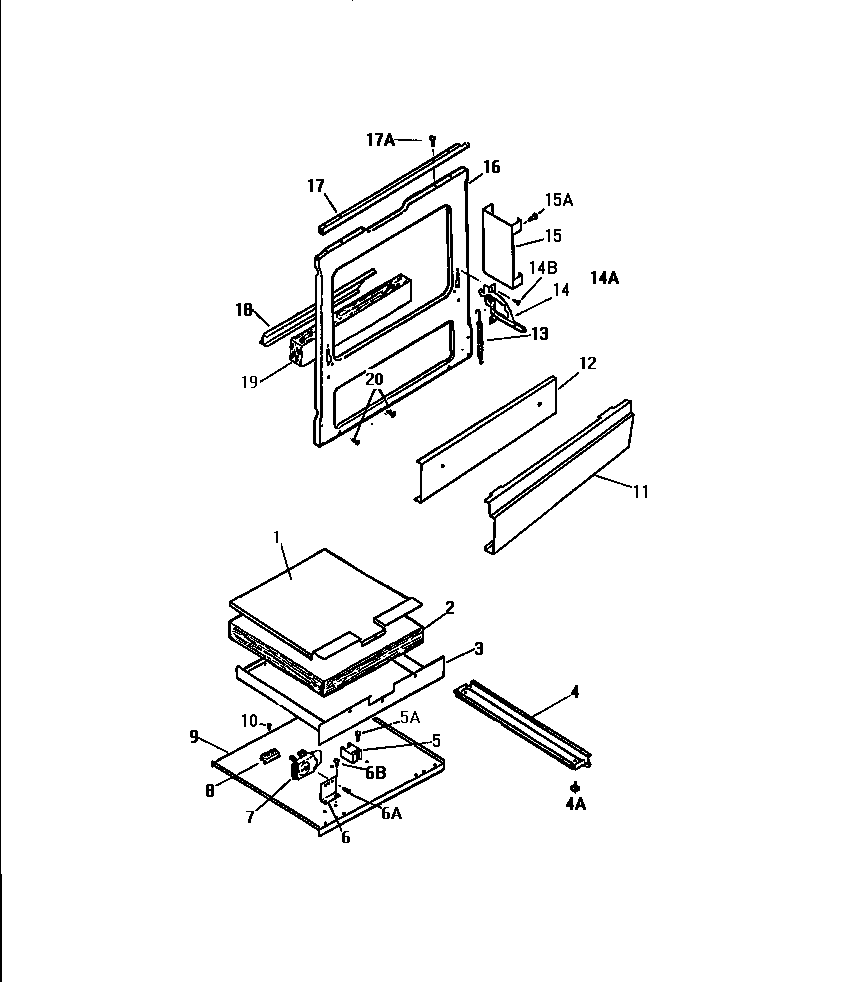

GF980HXD2 07 – FRAME, SERVICE PANEL, BASE

Products

Position	Product
1	TOP, SERVICE DRAWER
2	INSULATION
3	WCI A11066000
4A	LEVELING LEG
4	BASE RAIL
5	WCI Q301950
6	WCI A18081000
6A	WCI AP049001
7	TIMER, CLEAN
8	BLOCK, TERM.
9	PANEL, BOTTOM
10	SCREW
11	WCI Q301956
12	WCI Q301851
13	SPRING
14B	5304500008 Frigidaire Oven Screw
14A	318348801 Frigidaire Oven Left Side Door Hinge
14	WCI A96068000
15	RETAINER
16	FRAME
17	WCI A74064000
17A	WCI AP051056
18	RETAINER
19	RETAINER
20	WCI Q301839
