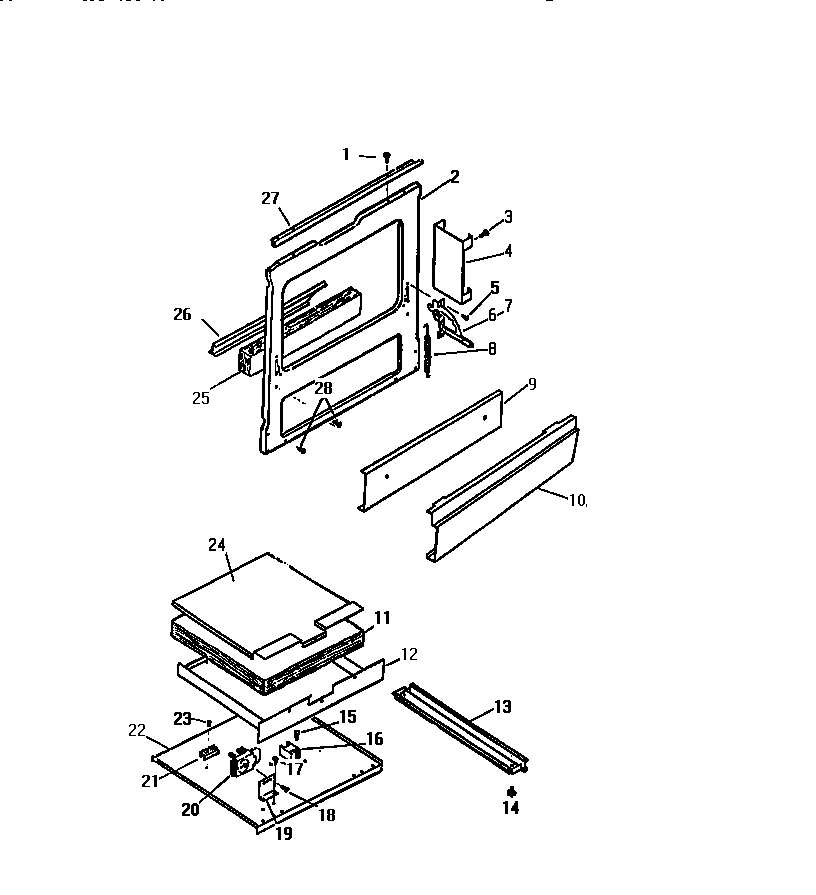

GF980HXF1 08 – FRAME, SERVICE PANEL, BASE

GF980HXF1 08 – FRAME, SERVICE PANEL, BASE

Written by

in

GF980HXF1 08 – FRAME, SERVICE PANEL, BASE

Products

PositionProduct
2FRAME
4RETAINER
55304500008 Frigidaire Oven Screw
6318348801 Frigidaire Oven Left Side Door Hinge
7WCI A96098000
8SPRING
9WCI Q301951
10WCI Q301953
10WCI Q301959
11INSULATION
12WCI A11066000
13BASE RAIL
14WCI AP059009
16WCI Q301950
17WCI AP051056
18WCI AP049001
19WCI A18081000
20TIMER, CLEAN
21BLOCK, TERM.
22PANEL, BOTTOM
23SCREW
24TOP, SERVICE DRAWER
25RETAINER
26RETAINER
27WCI A74064000
28WCI Q301839
