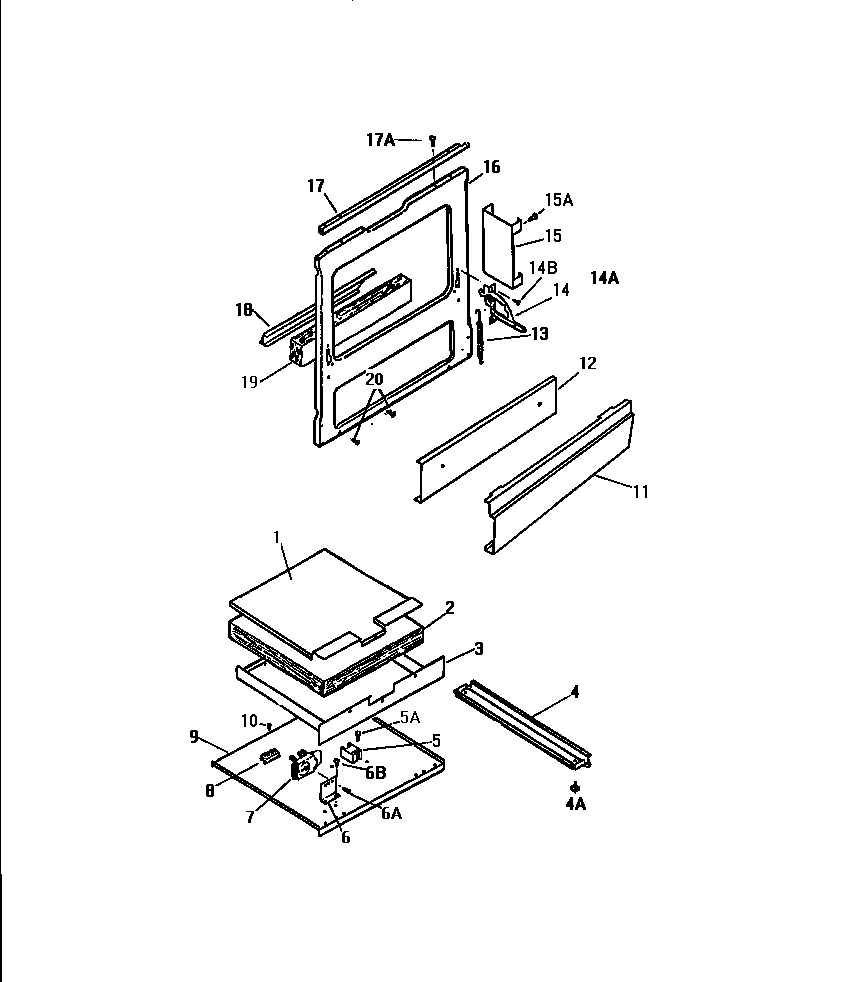

GF980HXV2 07 – FRAME, SERVICE PANEL, BASE

Products

PositionProduct
1TOP, SERVICE DRAWER
2INSULATION
3WCI A11066000
4ALEVELING LEG
4BASE RAIL
5WCI Q301950
6AWCI AP049001
6WCI A18081000
7TIMER, CLEAN
8BLOCK, TERM.
9PANEL, BOTTOM
10SCREW
11WCI Q301954
11WCI Q301952
12WCI Q301851
13SPRING
14B5304500008 Frigidaire Oven Screw
14WCI A96068000
14A318348801 Frigidaire Oven Left Side Door Hinge
15RETAINER
16FRAME
17AWCI AP051056
17WCI A74064000
18RETAINER
19RETAINER
20WCI Q301839
