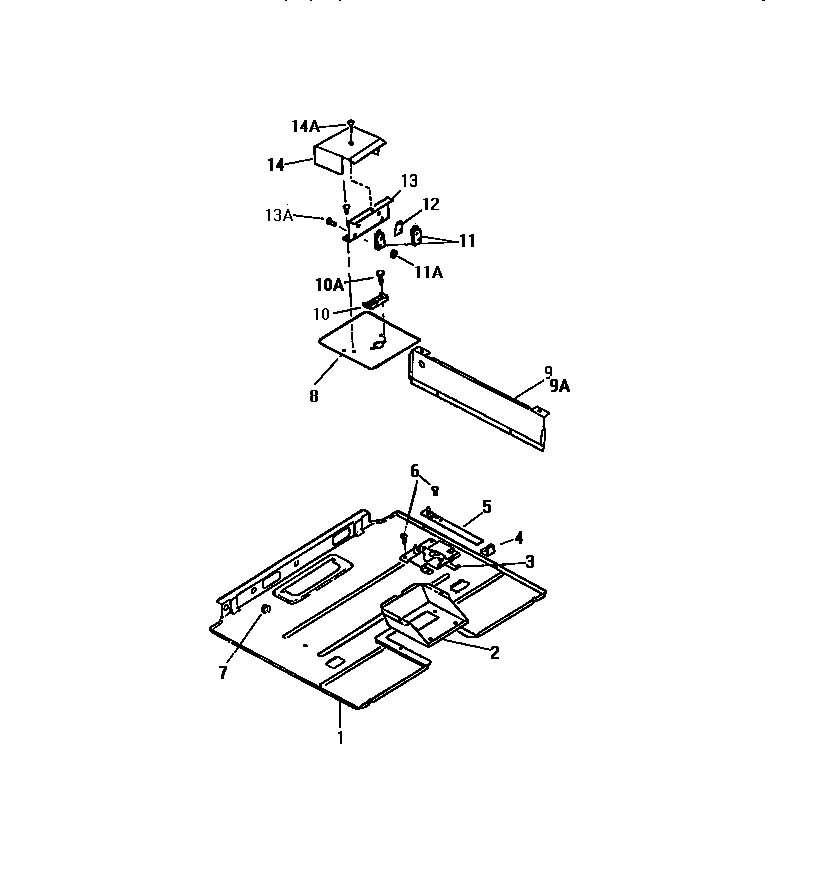

GF980HXW2 05 – BURNER PANEL
Products
| Position | Product |
|---|---|
| 1 | WCI Q310109 |
| 2 | WCI A7407500 |
| 3 | LATCH, OVEN DOOR |
| 4 | KNOB |
| 5 | WCI Q301913 |
| 7 | WCI AP074001 |
| 8 | COVER, LATCH |
| 9A | WCI A6107400 |
| 9 | HEAT SHIELD-RH |
| 10A | WCI Q301839 |
| 10 | WCI A2001000 |
| 11A | NUT |
| 11 | SWITCH, MICRO |
| 12 | INSULATOR |
| 13A | SCREW |
| 13 | BRACKET |
| 14 | WCI Q301912 |
| 14A | WCI AP051056 |
