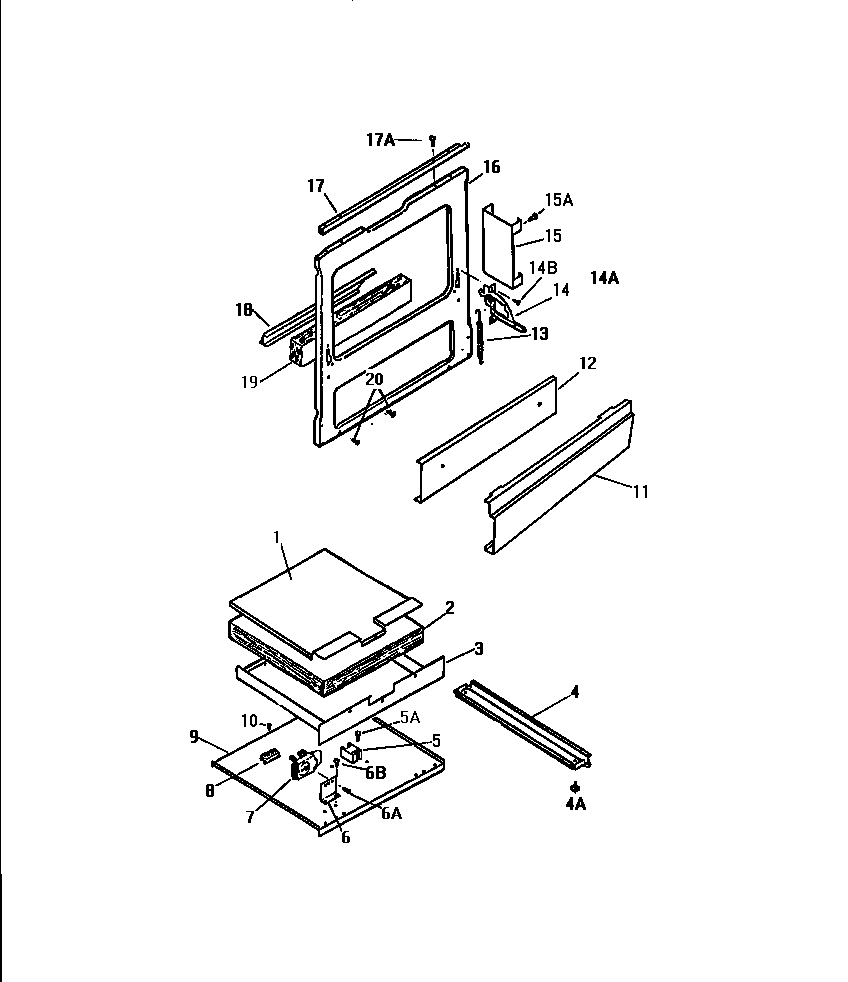

GF980HXW2 07 – FRAME, SERVICE PANEL, BASE

Products

Position	Product
1	TOP, SERVICE DRAWER
2	INSULATION
3	WCI A11066000
4	BASE RAIL
4A	LEVELING LEG
5	WCI Q301950
6A	WCI AP049001
6	WCI A18081000
7	TIMER, CLEAN
8	BLOCK, TERM.
9	PANEL, BOTTOM
10	SCREW
12	WCI Q301851
13	SPRING
14B	5304500008 Frigidaire Oven Screw
14A	318348801 Frigidaire Oven Left Side Door Hinge
14	WCI A96068000
15	RETAINER
16	FRAME
17	WCI A74064000
17A	WCI AP051056
18	RETAINER
19	RETAINER
20	WCI Q301839
