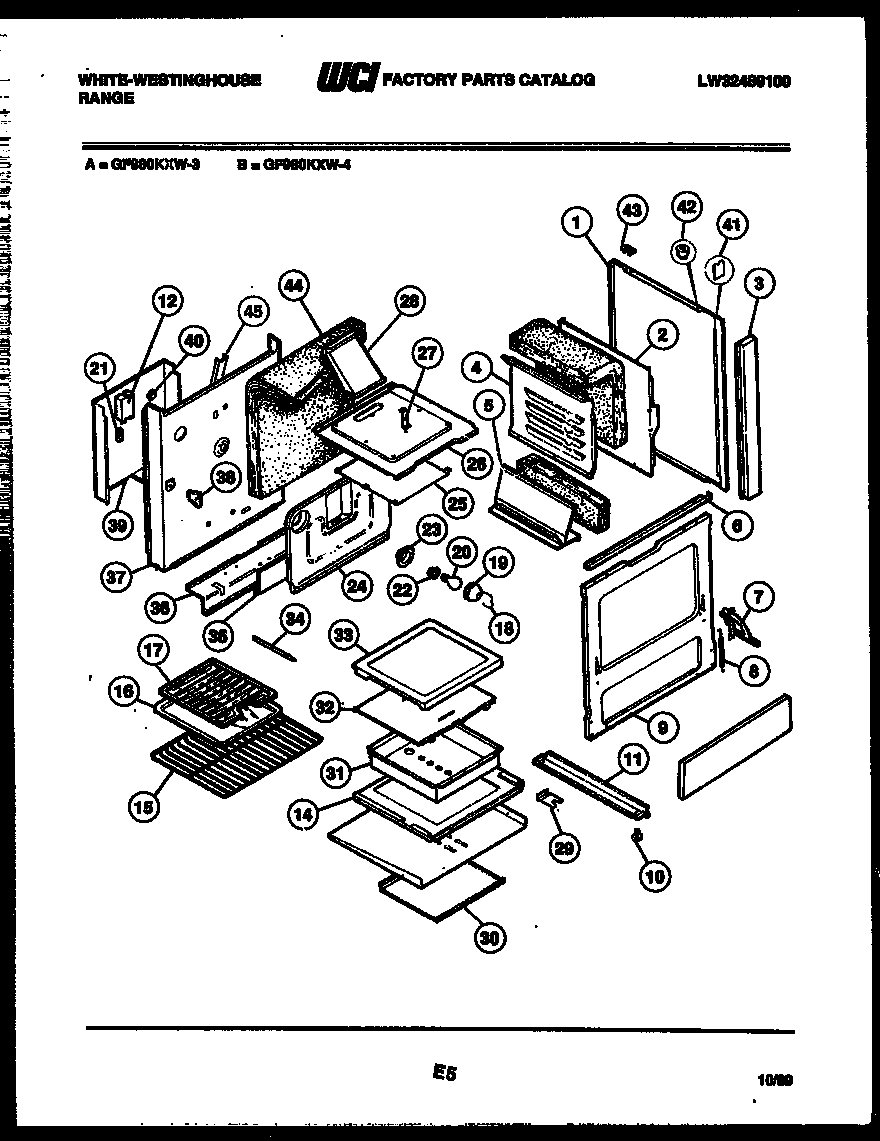

GF980KXD3 08 – BODY PARTS

Products

Position	Product
1	WCI 08014619
2	WCI 3131794
3	TRIM-BODY SIDE (2)
4	LINER-RIGHT SIDE
4A	WCI 3016534
5	WCI 3131820
6	SUPPORT CONTROL PNL
7A	WCI 3205894
7	318348801 Frigidaire Oven Left Side Door Hinge
8	SPRING (2)
9	WCI 3205905
10	WCI 3051080
11	BASE RAIL
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14	WCI 12055
15	RACK-OVEN
16	WCI 3016973
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	RETAINER – LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	WCI 08007985
22	316116400 Frigidaire Oven Light Socket
23	WCI 3051511
24	LINER OVEN BACK
25	WCI 08011509
26	WCI 3131802
27	WCI 3131800
28	VENT BOX ASSEMBLY
29	ANTI-TIP KIT
30	SHIELD
31	WCI 08068046
32	WCI 08068032
33	WCI 3016975
34	WCI 32011070
35	SUPPORT, CONTROL VALVE
36	WCI 3131831
37	WCI 3131833
38	SUPPORT-REAR OVN (2)
39	WCI 08068036
40	WCI 3131839
41	CLIP,BODYSIDE
42	GROMMET
43	GROMMET MAIN TOP
44	WCI 3131795
44A	WCI 3131840
45	CHANNEL – MAIN WIRE
