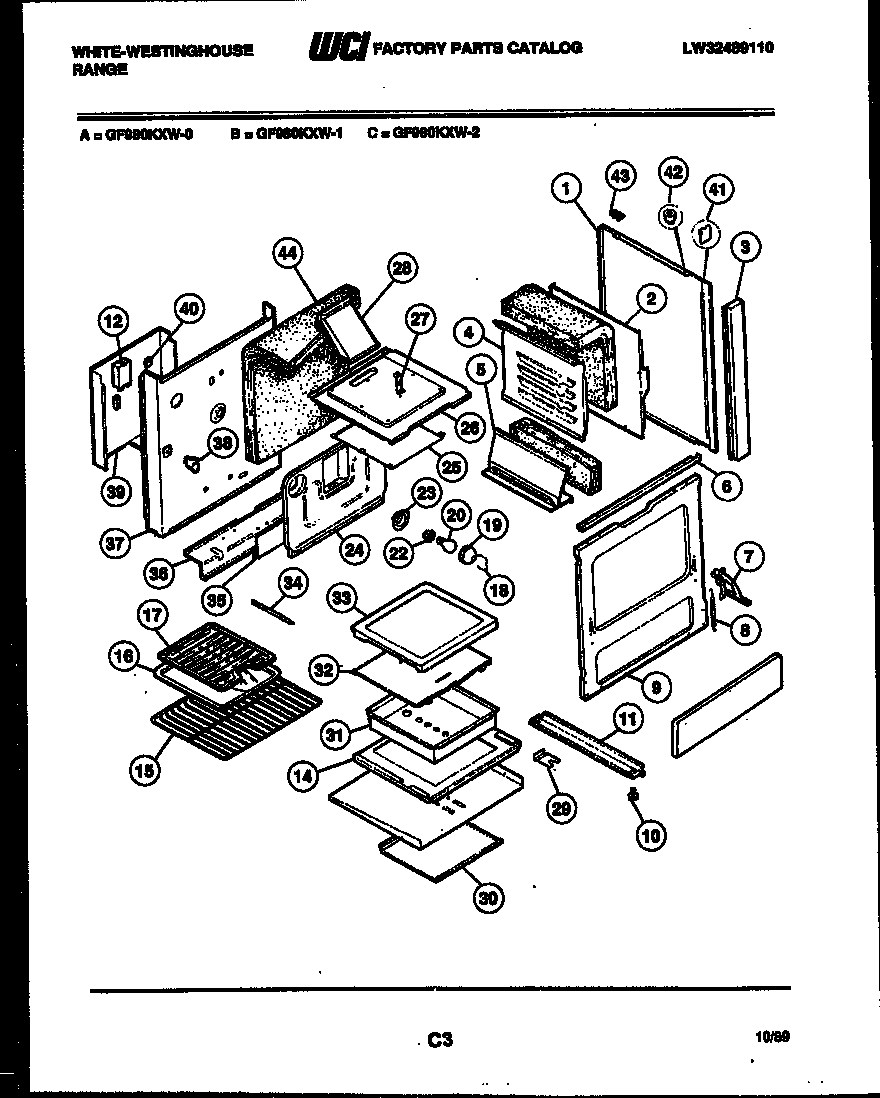

GF980KXW1 08 – BODY PARTS

Products

Position	Product
1	PANEL-BODYSIDE (WHITE) (2)
2	WCI 3131794
3	WCI Q000310079
4	LINER-RIGHT SIDE
5	WCI 3131820
7	HINGE DOOR RT
7A	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI AP00339038
9	FRAME-FRONT
10	WCI Q000310108
11	WCI A098373000
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14	LINING-OVEN BOTTOM
15	RACK-OVEN
16	WCI A053008001
17	WCI AP043003001
18	RETAINER-OVEN LIGHT LENS
20	316538904 Frigidaire Oven Lamp Light
22	316116400 Frigidaire Oven Light Socket
23	5304524341 Frigidaire Lens
24	WCI 3131804
25	WCI A00901100
26	WCI 3131802
27	WCI A018080000
28	VENT BOX ASSEMBLY
29	BRACKET-INSTALLATION (2)
30	WCI 3131819
31	WCI 3131822
32	WCI 08011508
33	WCI 3131824
34	SHIELD-CAPILLARY BULB
35	WCI 3131830
36	WCI A074076000
37	WCI 08068031
38	WCI A074060000
39	WCI 3131835
40	WCI 3131839
41	CLIP BACKSPLASH CORNER
42	WCI AP00172002
43	GROMMET MAIN TOP
44A	WCI 3131840
44	WCI 3131795
