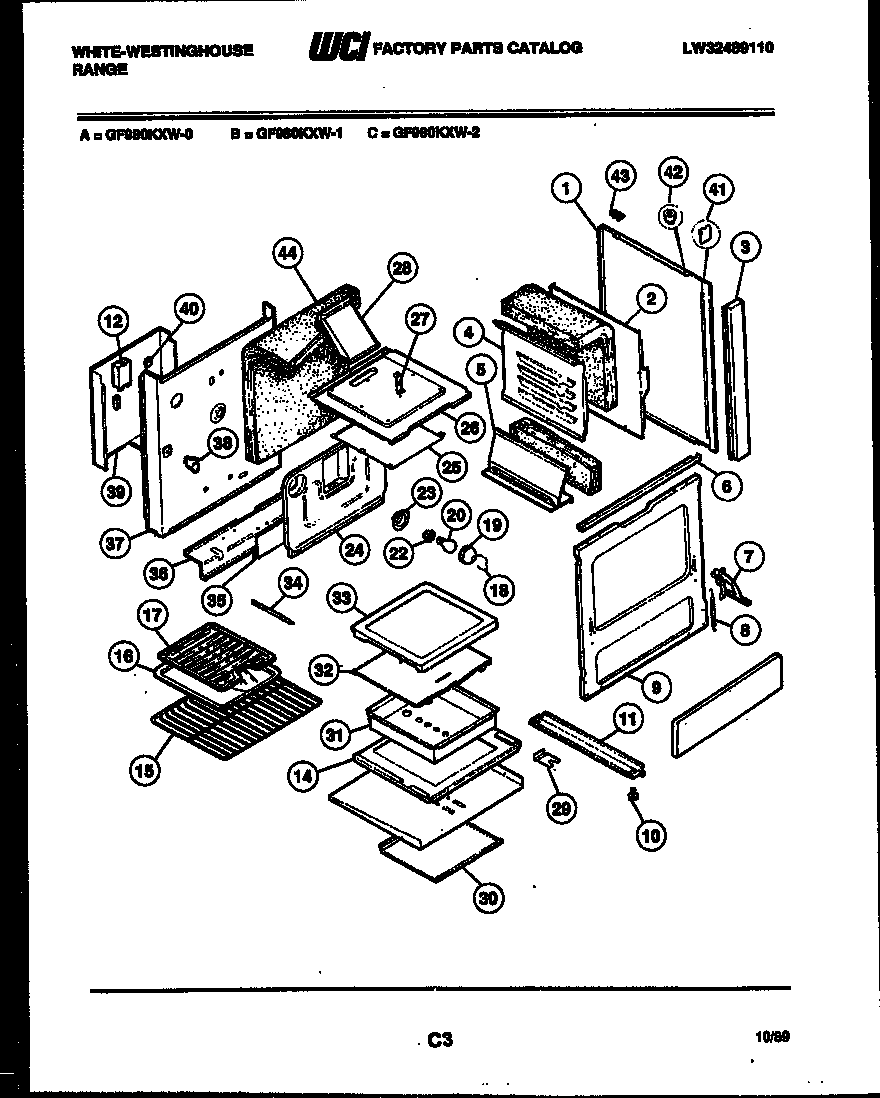

GF980KXW2 08 – BODY PARTS

Products

Position	Product
1	PANEL-BODYSIDE (WHITE) (2)
2	WCI 3131794
3	WCI Q000310079
4	OVEN LINER SIDE RH
4A	LINER-LEFT SIDE (BLUE)
5	WCI 3131820
7	HINGE DOOR RT
7A	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI AP00339038
9	FRAME-FRONT (BLUE)
10	WCI Q000310108
11	WCI A098373000
14	LINING-OVEN BOTTOM (BLUE)
16	BROILER-PAN
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	RETAINER-OVEN LIGHT LENS
20	316538904 Frigidaire Oven Lamp Light
22	316116400 Frigidaire Oven Light Socket
23	5304524341 Frigidaire Lens
24	LINER-OVEN BACK (BLUE)
25	WCI A00901100
26	WCI 3131802
27	WCI A018080000
28	VENT BOX ASSEMBLY
29	BRACKET-INSTALLATION (2)
30	WCI 3131819
31	WCI 3131822
33	OVEN-BOTTOM PLATE (BLUE)
34	SHIELD-CAPILLARY BULB
35	WCI 3131830
36	WCI A074076000
37	WCI 08068031
38	WCI A074060000
39	WCI 3131835
40	WCI 3131839
41	CLIP BACKSPLASH CORNER
42	WCI AP00172002
