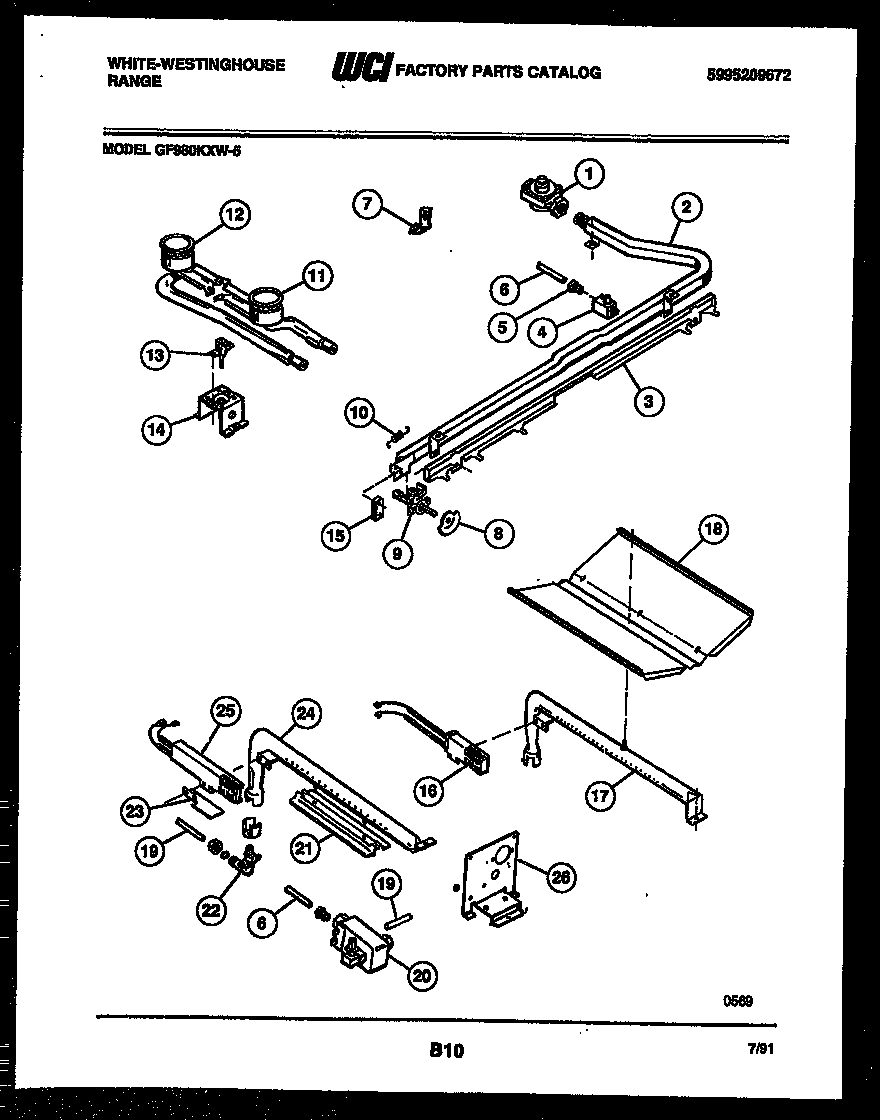

GF980KXW5 07 – BURNER, MANIFOLD AND GAS CONTROL

GF980KXW5 07 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GF980KXW5 07 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3SLIDE BAR
4WCI 5303131099
5WCI 3131064
6WCI 08068028
7WCI 5300009126
8WCI 5303131859
9VALVE-TOP BURNER (2)
10SPRING – SLIDE BAR
11BURNER-TOP FRONT
12Burner,top ,rear
13IGNITER-TOP BURNER 48“
14WCI 3203964
15WCI 5303131094
165303935066 Frigidaire Oven Flat Igniter 17" Leads
17BURNER-OVEN BAKE
18Baffle,oven burner
19WCI 3131866
20VALVE-SAFETY
21BAFFLE-BROILER
22WCI 08011470
23WCI 3131871
24BURNER-BROILER
255303935067 Frigidaire Range Oven Flat Igniter 3-1/4"
26SUPPORT-REAR OVN (2)
