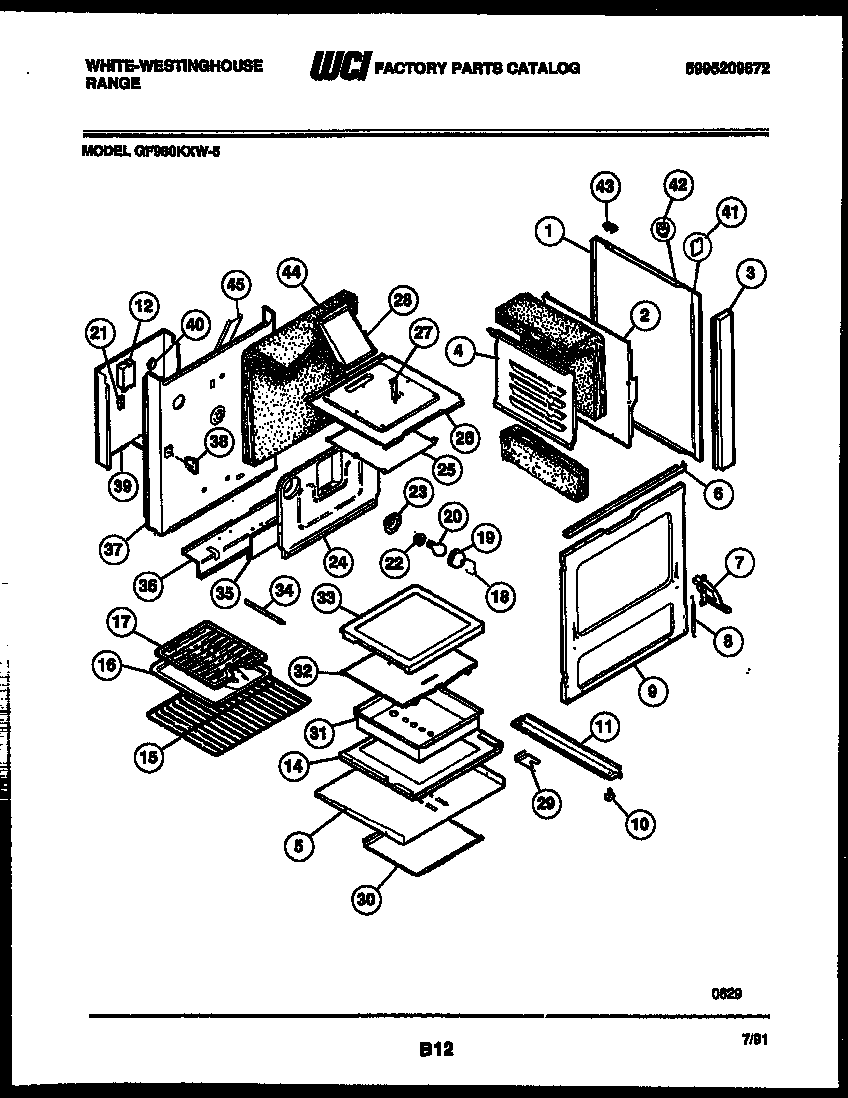

GF980KXW5 08 – BODY PARTS

Products

Position	Product
1	BODYSIDE PANEL-WHITE (2)
2	WCI 3131794
3	WCI 5308014088
4A	WCI 3016534
4	LINER-RIGHT SIDE
5	WCI 3131820
6	SUPPORT CONTROL PNL
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	WCI 3205894
8	SPRING-OVEN DR (2)
9	WCI 3205905
11A	RAIL-BASE, LH
11	Rail,base ,RH
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14	WCI 12055
15	OVEN RACK (2)
16	WCI 5303016973
17	WCI 5303017712
18	RETAINER-LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	TERMINAL BLOCK
22	316116400 Frigidaire Oven Light Socket
23	WCI 3051511
24	LINER OVEN BACK
25	BAFFLE-BROILER
26	WCI 3131802
27	WCI 3131800
28	VENT BOX ASSEMBLY
29	ANTI-TIP KIT
30	SHIELD
31	PAN-OVEN BURNER
32	SHIELD-BAKE BURNER
33	WCI 3016975
34	WCI 3201170
35	SUPPORT, CONTROL VALVE
36	WCI 3131831
37	WCI 3131833
38	SUPPORT-REAR OVN (2)
39	WCI 08068038
40	THERMOSTAT BAKE BROIL SELECT
41	CLIP,BODYSIDE
42	GROMMET
43	GROMMET-MAINTOP
44A	WCI 3131840
44	WCI 3131795
45	CHANNEL - MAIN WIRE
