GFAN1100L2WW CONTROLS & DISPENER

GFAN1100L2WW CONTROLS & DISPENER

Written by

in

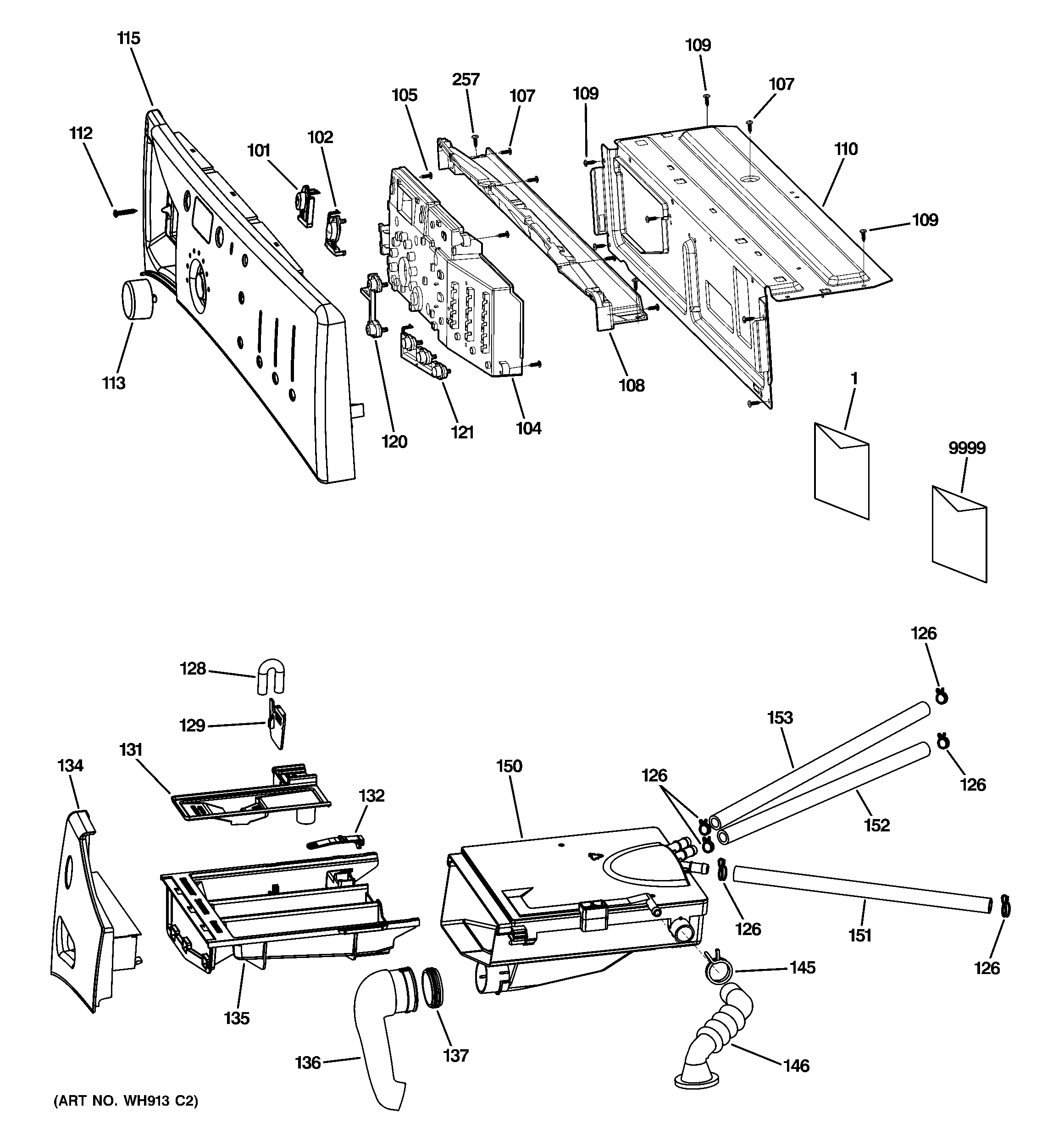

GFAN1100L2WW CONTROLS & DISPENER

Products

PositionProduct
1GEN 31-16608
1GEN 49-90360-3
1GEN 49-90392-1
101GEN WH01X10320
101GEN WH01X10239
102GEN WH01X10240
102GEN WH01X10321
104GEN WH12X10520
105WH02X10181 GE Screw ST3.5 x 11
107WH02X10183 GE Screw ST4 13
108GEN WH16X10071
109WH02X10184 GE Screw 4.2 x 13
110GEN WH46X10122
112WH02X10185 GE Screw ST4 25
113WE04X21014 GE Washer Control Knob
113GEN WH11X10050
115GEN WH42X10827
115GEN WH42X10825
120GEN WH12X10379
120GEN WH12X10352
121GEN WH12X10306
121GEN WH12X10354
126WH01X10324 GE Washer Water Inlet Hose
128WH41X10112 GE Siphon Pipe
129GEN WH41X10266
131WH41X10155 GE Washer Bleach Dispenser
132WH01X10245 GE Level Drawer Latch
134GEN WH41X10177
135GEN WH41X10278
136GEN WH41X10118
137GEN WH41X10119
145GEN WH01X10250
146GEN WH41X10122
150GEN WH41X10277
151GEN WH41X10156
152WH41X10157 GE Inlet Water Hose for Bleach
153WH41X10158 GE Hot Water Inlet Hose
257WH02X10201 GE Screw ST4.2 13
9999GEN WH49X10089
9999WE25X10028 GE Washer Stacking Kit
