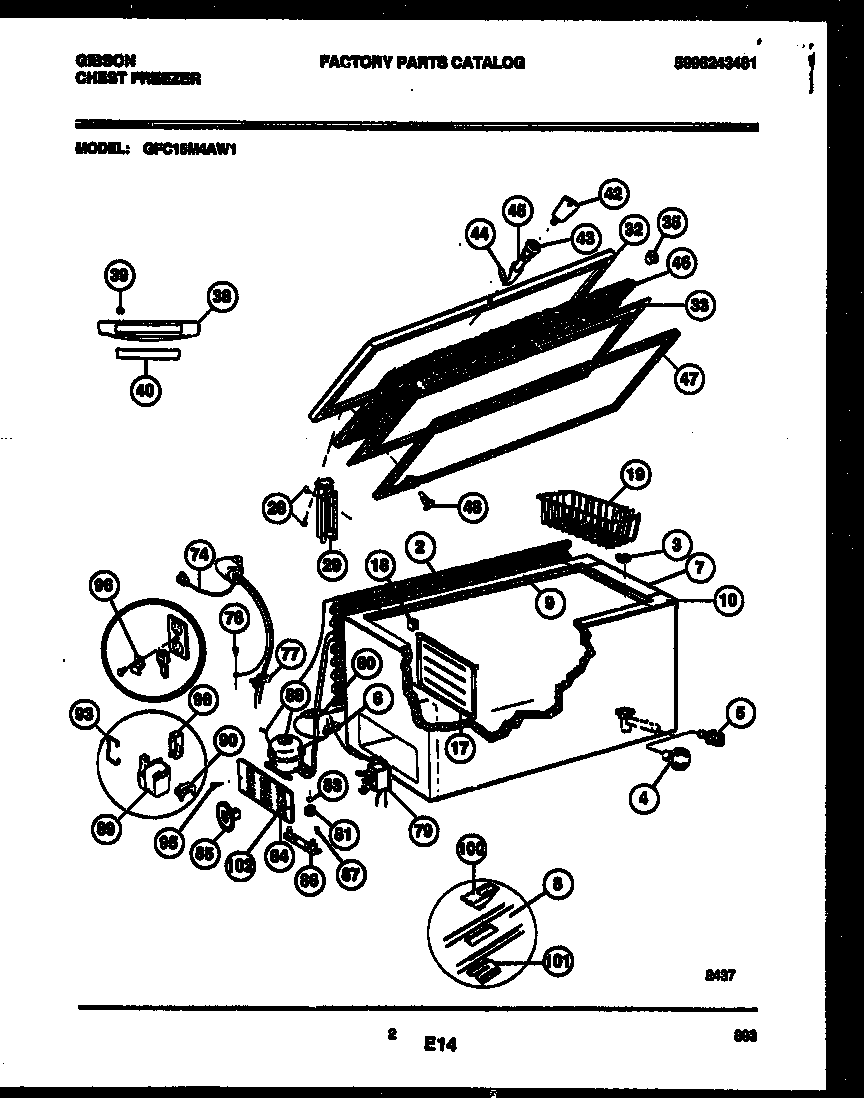

GFC15M4AW1 02 – CHEST FREEZER PARTS

Products

Position	Product
*59115	WCI 5303294326
2	WCI 5303280307
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	Breaker,white ,ends
8	WCI 216111600
9	BREAKER, HINGE SIDE
10	Breaker,white ,corners
17	WCI 216128200
18	WCI 5306594584
19	WCI 216080300
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
32	WCI 216129900
33	WCI 216057804
35	WCI 216141101
38	WCI 5309948646
39	WCI 5309948647
40	WCI 5303270969
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5303925107
44	WCI 5300300791
45	Washer-sealing
46	WCI 5300128901
47	216481211 Frigidaire Refrigerator Door Gasket
48	5303212828 Frigidaire Refrigerator Primary Clip
74	HARNESS
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	CONTROL TEMP.
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP, SPRING MTG
84	WCI 216022700
85	WCI 216034505
86	WCI 5303212615
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
87A	WASHER-FLAT
88	WCI 216138400
89	WCI 216008900
90	WCI 5303206885
93	WCI 216147800
95	216858001 Frigidaire Refrigerator Screw
96	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98	5304464438 Frigidaire Compressor Run Capacitor
100	WCI 5303208408
101	WCI 216080800
102	PLUG-INDICATOR
