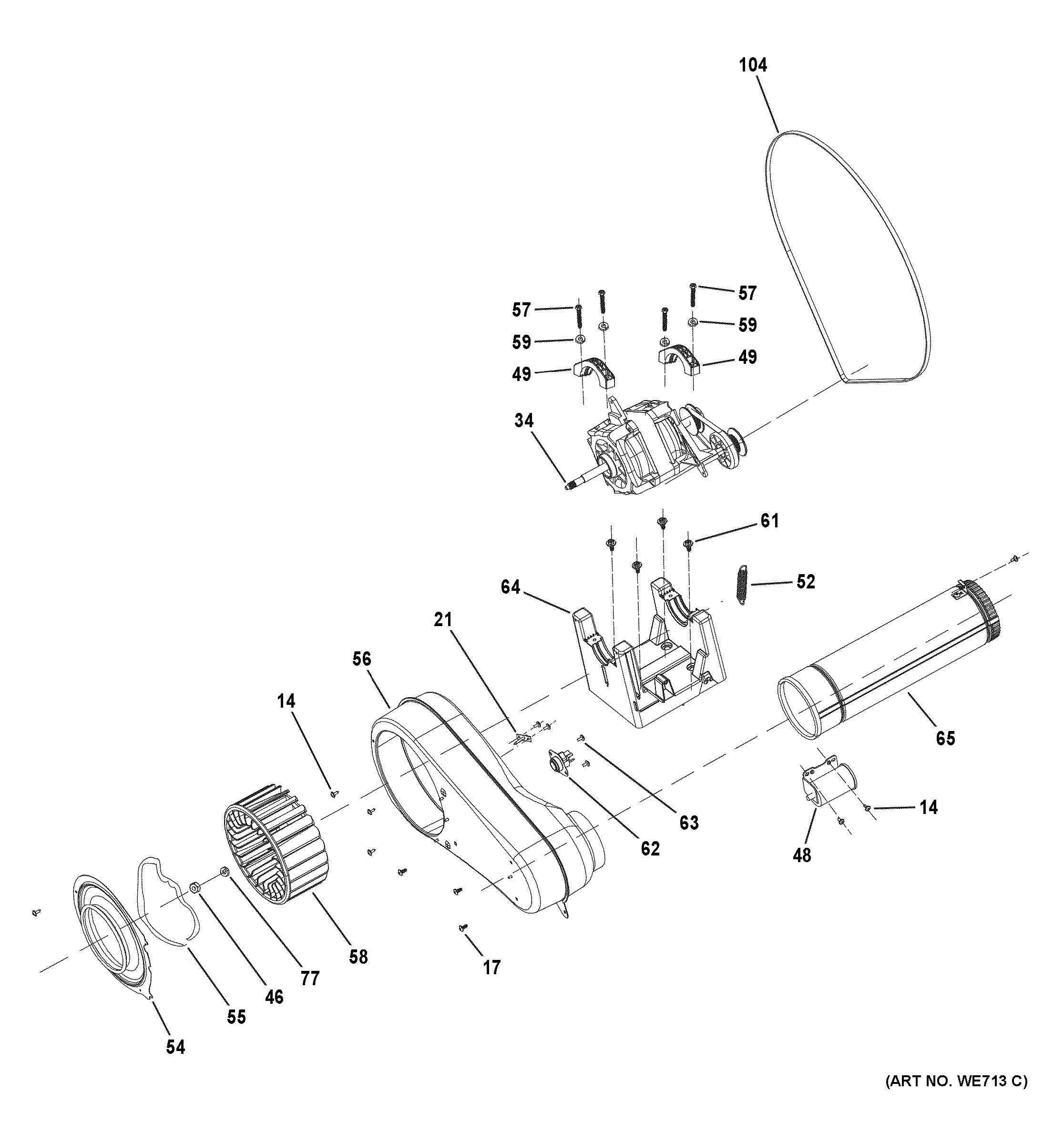

GFD14ESSN0WW BLOWER & MOTOR ASSEMBLY

GFD14ESSN0WW BLOWER & MOTOR ASSEMBLY

Written by

in

GFD14ESSN0WW BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
14WH02X26267 GE Screw
17WH02X26247 GE Housing Screw ST4 12
21WE04X26348 GE Outlet Thermistor
34WE03X28740 GE Motor Assembly
46WE02X28704 GE Nut M8
48WE01X26354 GE Capacitor
49WE13X28726 GE Motor Bracket
52WE01X28759 GE Spring
54WE01X28758 GE Volute End Cover
55WE09X27688 GE Gasket
56WE13X28716 GE Blower Motor Cover
57BOLT M5*25
58WE16X28729 GE Blower Fan
59MOTOR SPRING
61BOLT M5*14
62WE04X28741 GE Temperature Control
63WH02X26927 GE Capacitor Screws
64WE13X28727 GE Bracket Motor
65WE13X28734 GE Exhaust Pipe
77WH01X27132 GE Washer Spring
104WE12X26360 GE Belt
