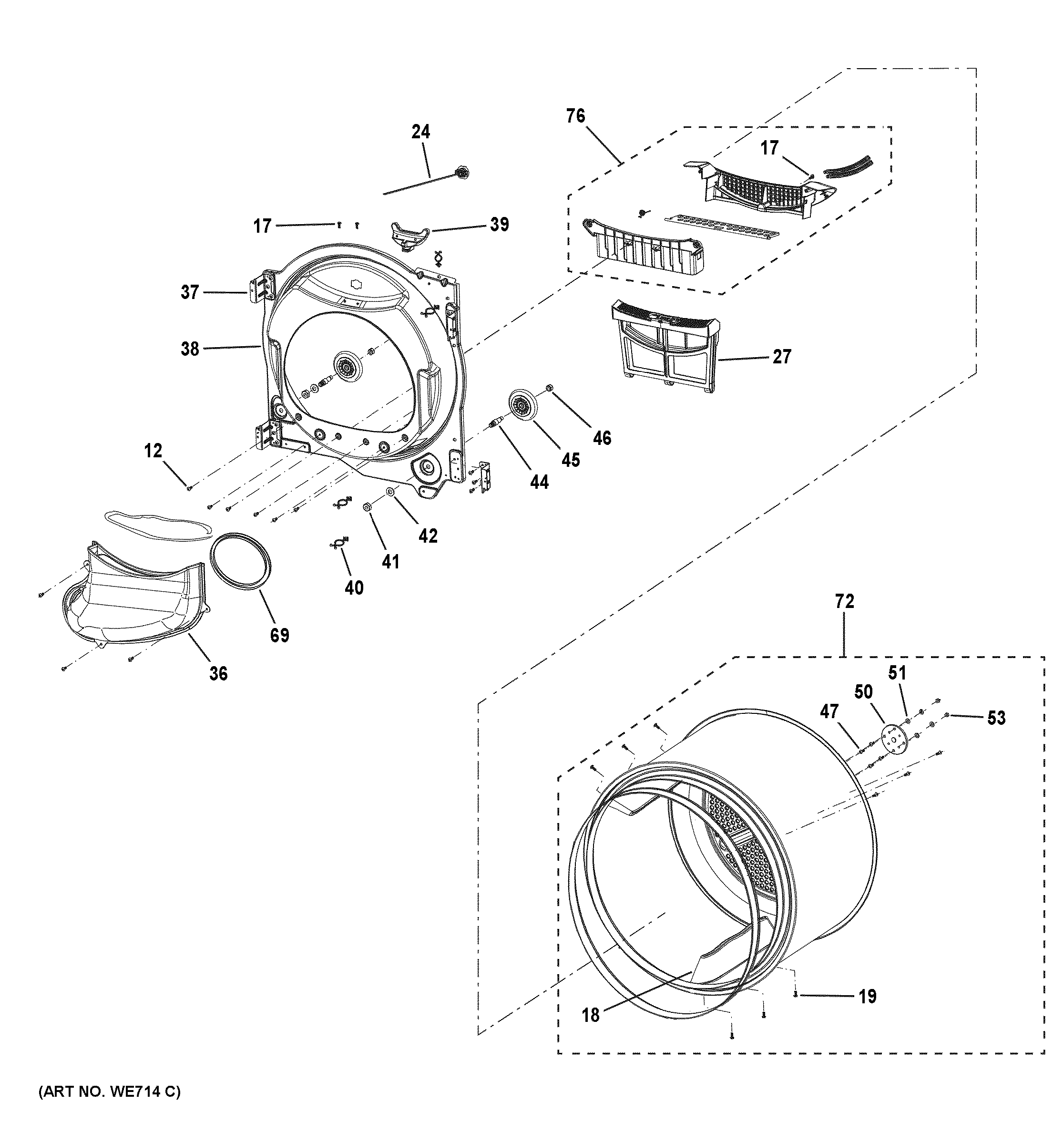

GFD14ESSN0WW DRUM

Products

Position	Product
12	WE02X26338 GE Front Panel Screws
17	WH02X26247 GE Housing Screw ST4 12
18	WE01X26575 GE Tub Baffle
19	SCREW
24	WE11X27508 GE Lamp
27	WE16X28728 GE Lint Filter
36	WE13X28735 GE Front Air Duct
37	WE13X28710 GE Front Drum Support Bracket
38	WE13X28733 GE Front Drum Support
39	WE13X28737 GE Drying Rack Hanger
40	FIXED-LINE CLIP
41	NUT M10
42	WE02X28702 GE M10 Nut Gasket
44	WE01X28721 GE Drum Wheel Support Shaft
45	WE21X26838 GE Drum Wheel
46	WE02X28704 GE Nut M8
47	WE02X28697 GE M6 Bolt 14
50	WE13X28725 GE Flange Plate
51	WE01X28719 GE Gasket Flat
53	WE02X28707 GE Nut M6
69	WE05X28708 GE Front Air Duct Gasket
72	WE21X28743 GE Drum Assembly
76	WE16X28747 GE Duct Trap Housing
