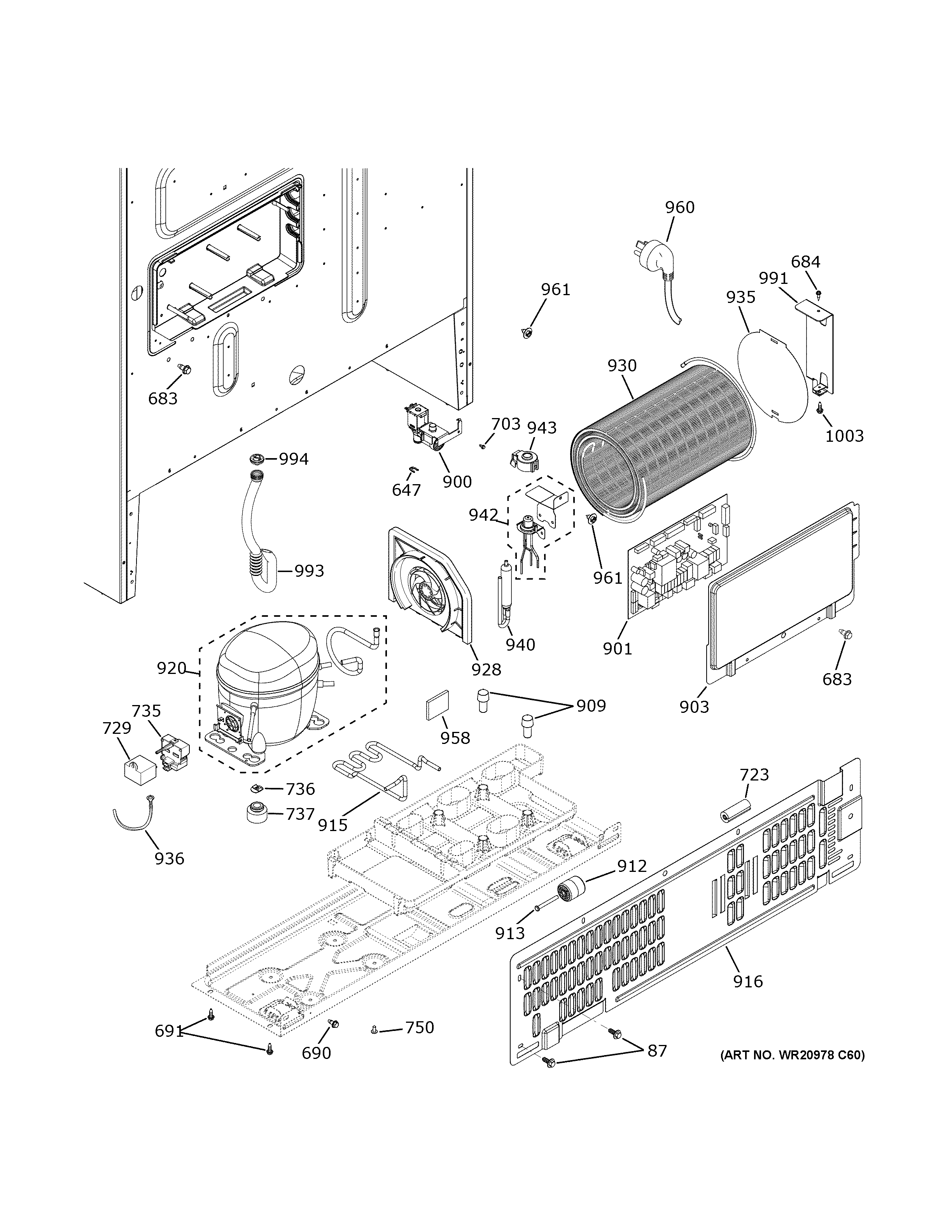

GFD28GMLLES MACHINE COMPARTMENT

GFD28GMLLES MACHINE COMPARTMENT

Written by

in

GFD28GMLLES MACHINE COMPARTMENT

Products

PositionProduct
87WR02X36891 GE Screw ST3.9-1.4 Ab IHXWT20
647WR01X11041 GE Refrigerator Quick Clip Connector 1/4
683WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
684WR01X10635 GE Scr 8-32 Ca IHVW .625 S
690WZ5X158D GE Screw Package of 12
691SCREW ST5.5-1.8 AB IHXW 20 S
703WR02X36721 GE Screw St4.0-1.4 Ab Ihxwt20 20
723WR14X10055 GE Refrigerator Slit Grommet Tubing
729WR55X24064 GE Refrigerator Run Capacitor
735COMBO RELAY
736WR02X28299 GE Refrigerator Compressor Mounting Clip
737WR02X13719 GE Refrigerator Compressor Grommet
750WR1X1786 GE Refrigerator Screw
900VALVE WATER ISO ASM
901BOARD ASM MAIN REFLASHED
903WR02X25126 GE Refrigerator Mainboard Cover
909WR02X13668 GE Condenser Support
912WR02X13685 GE Refrigerator Wheel
913WR01X11008 GE Refrigerator Axle Wheel
915WR84X34173 GE Refrigerator Compressor Discharge Jumper
916WR82X37208 GE Refrigerator Rear Access Cover
920COMPRESSOR MEIZHI
928WR60X23363 GE Refrigerator Fan Gasket Assembly
930WR84X10115 GE Refrigerator Condenser Assembly Formed
935WR17X13045 GE Refrigerator Baffle Condenser Air
936HARNESS GROUND
940DRYER FILTER
943VALVE BODY ASM
958WR02X13724 GE Refrigerator Sound Deadening Mastic
960WR23X24389 GE Refrigerator Power Cord Harness
961WR02X36719 GE Screw Flat 3.9-1.4 Ab 20 16 S
991WR02X13622 GE Refrigerator Condenser Bracket
993WR02X28514 GE Refrigerator Drain Tube
994WR01X28515 GE Refrigerator Drain Vacuum BR
1003WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
