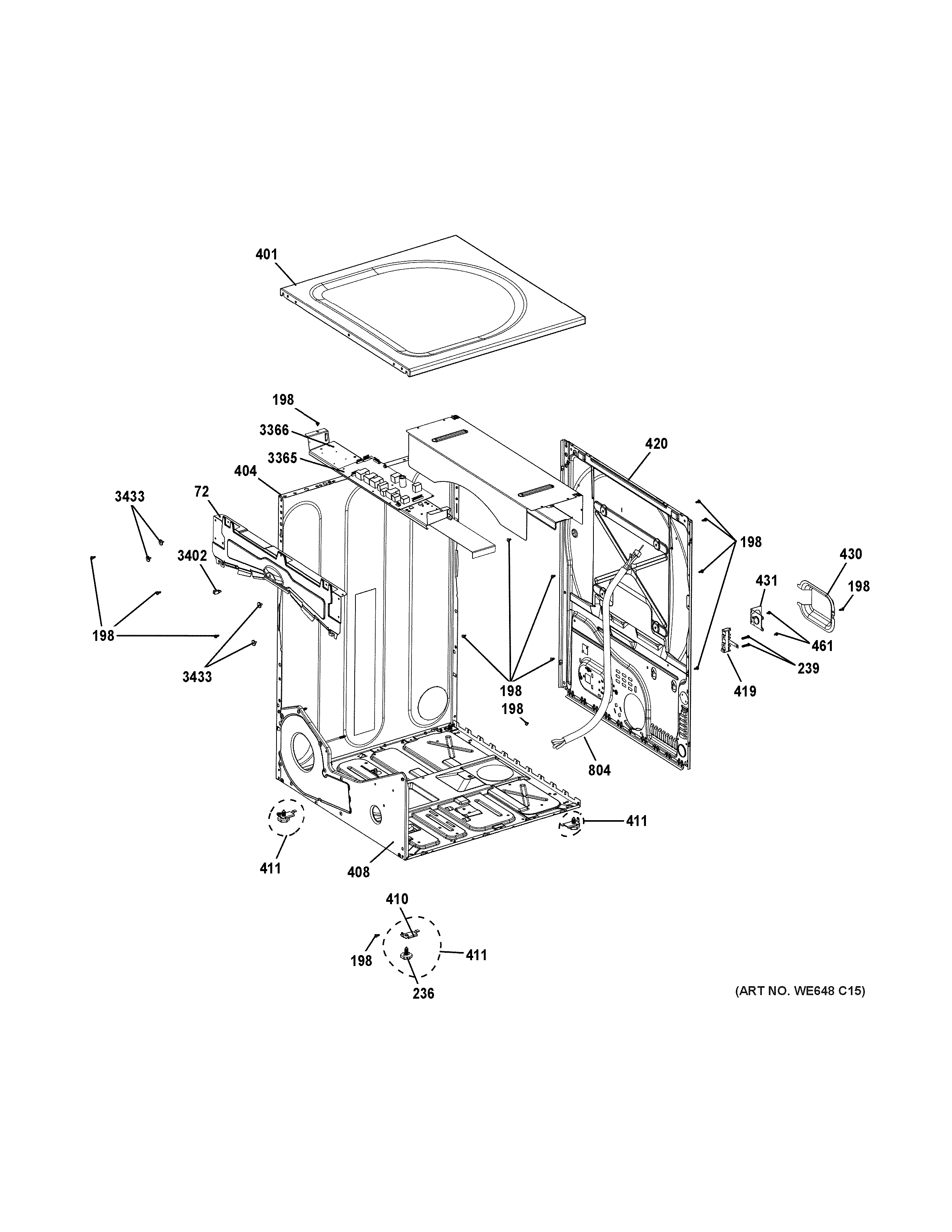

GFD40ESCM0WW CABINET & TOP PANEL

GFD40ESCM0WW CABINET & TOP PANEL

Written by

in

GFD40ESCM0WW CABINET & TOP PANEL

Products

PositionProduct
72WE01M10003 GE Shield Front
198WE01X25535 GE Screw
236WE1M642 GE Washer Leveling Leg
239WE2X21854 GE Screw
401WE20M10004 GE Panel
404WE20X27475 GE Side Panel
408CHASSIS BASE
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE20X20443 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
804WE15X23356 GE Electrical Harness Assembly
3365WE04M10011 GE Washer Main Power Board
3366WE1M864 GE Main Power Board
3402ENCLOSED SCREW GROMMET
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
