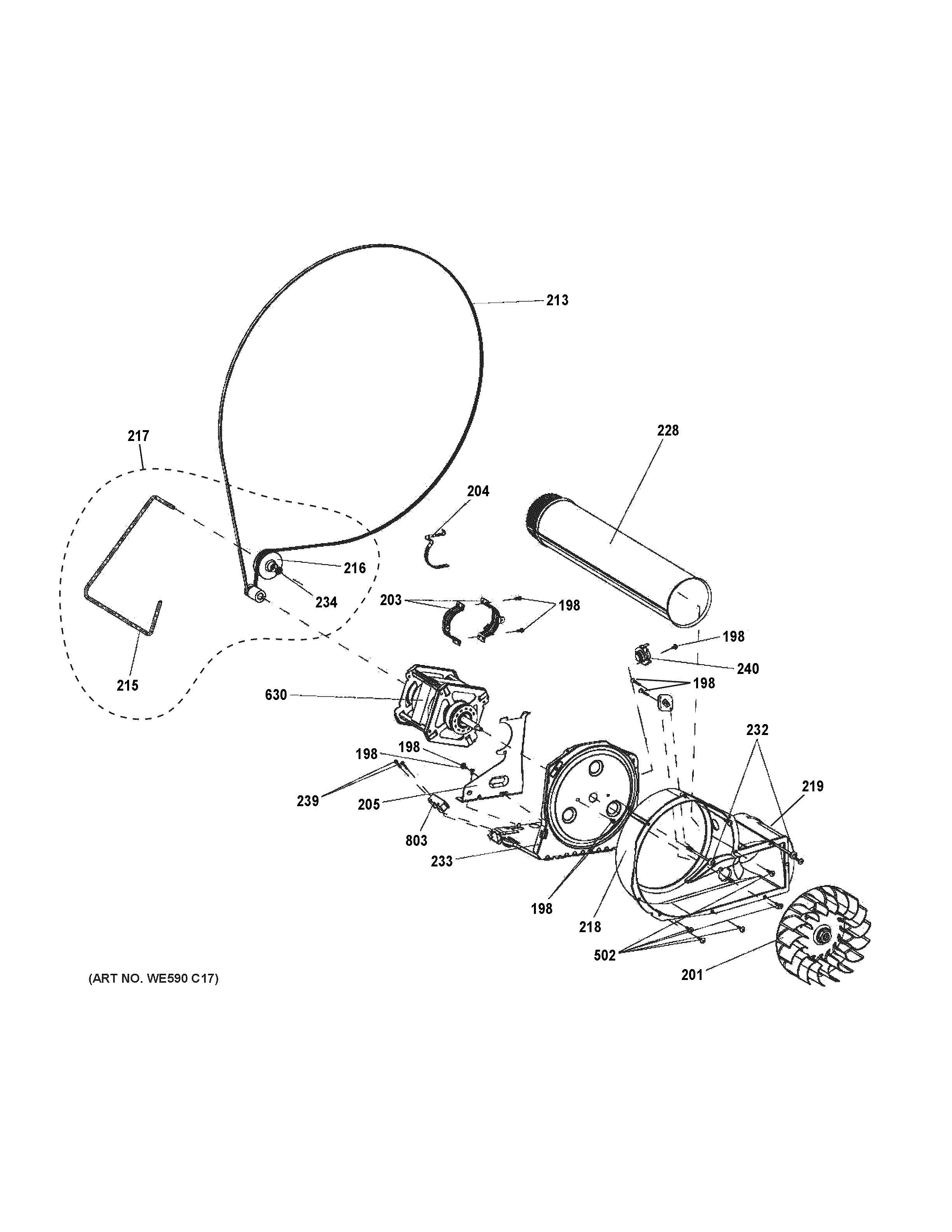

GFD40GSCM0WW BLOWER & MOTOR

GFD40GSCM0WW BLOWER & MOTOR

Written by

in

GFD40GSCM0WW BLOWER & MOTOR

Products

PositionProduct
198WE01X25535 GE Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
216PULLEY
217WE12M50 GE Washer Idler Arm Assembly
218WE14M239 GE Dryer Blower Housing
219WE09X27636 GE Exhaust Blower Gasket
228WE14X21035 GE Exhaust Duct
232WE2M202 GE Screw
233WE03X27285 GE Motor Plate
234GEN WE2M96?
239WE2X21854 GE Screw
240WE09X20569 GE Gasket
502WE2M174 GE Screw #10
630WE17X22215 GE Motor and Pulley Assembly
803WE03X20434 GE Washer Idler Arm
