GFD43ESSM0WW CABINET & TOP PANEL

GFD43ESSM0WW CABINET & TOP PANEL

Written by

in

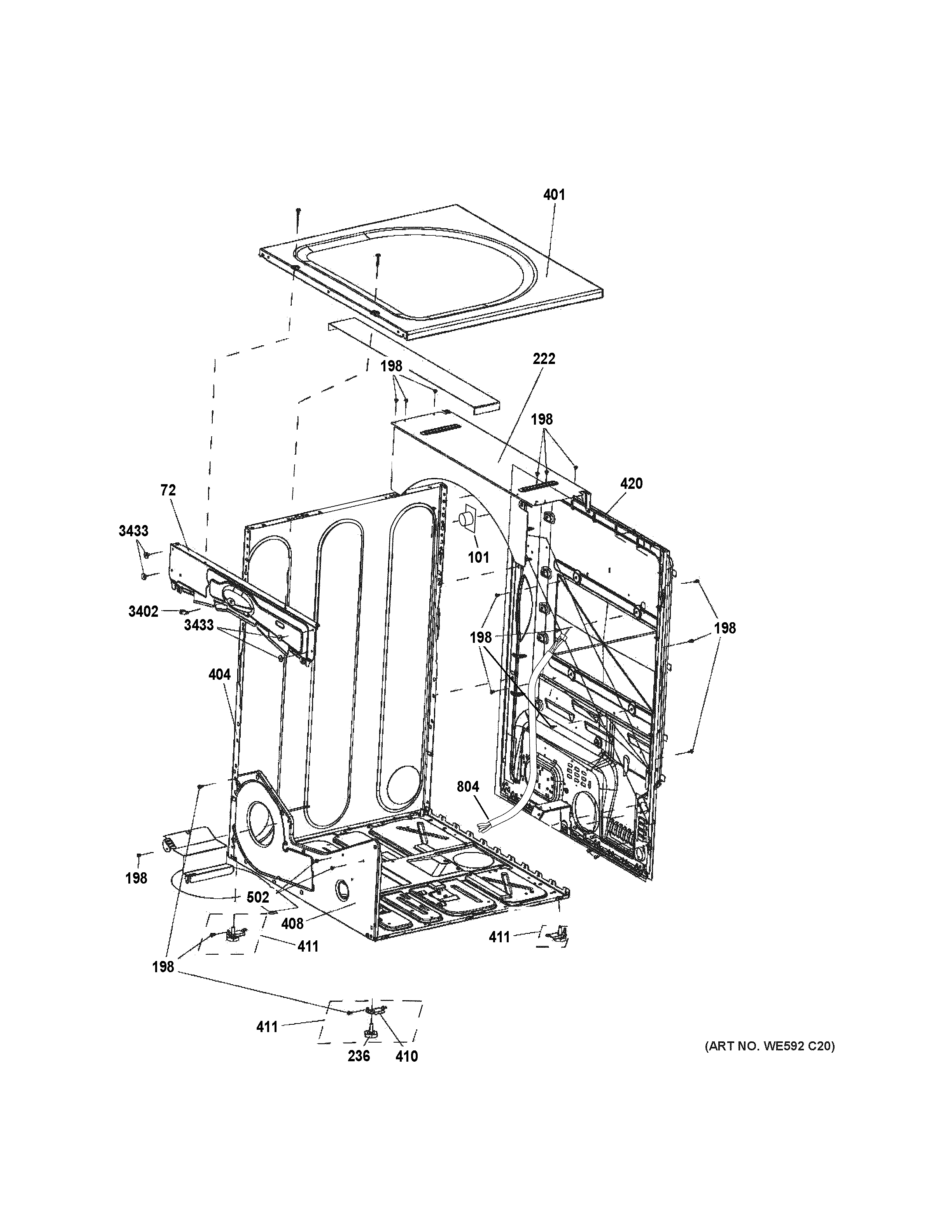

GFD43ESSM0WW CABINET & TOP PANEL

Products

PositionProduct
72WE01X21163 GE Front Shield
101WE01X21176 GE Board
198WE01X25535 GE Screw
222REAR PLATE
236WE1M642 GE Washer Leveling Leg
401WE20M10004 GE Panel
404WE20X27475 GE Side Panel
408WE20M429 GE Dryer Bottom Chassis
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
420WE20M381 GE Rear Panel 7.5 CF
502WE2M174 GE Screw #10
804WE15X23603 GE Harness Assembly
3402WE13X21164 GE UI Bracket
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
