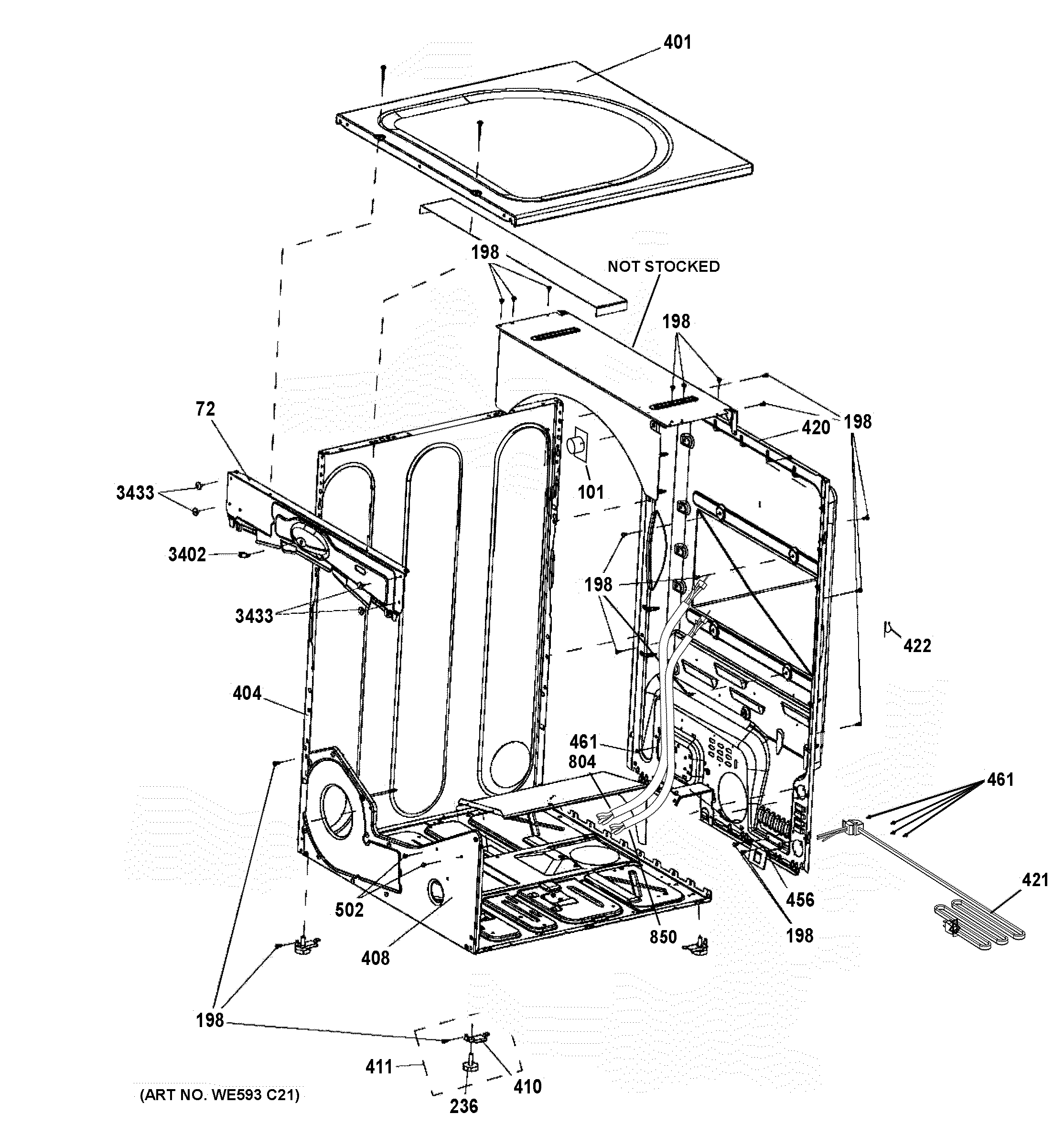

GFD43GSSM0WW CABINET & TOP PANEL

GFD43GSSM0WW CABINET & TOP PANEL

Written by

in

GFD43GSSM0WW CABINET & TOP PANEL

Products

PositionProduct
72WE01X21163 GE Front Shield
101WE01X21176 GE Board
198WE01X25535 GE Screw
236WE1M642 GE Washer Leveling Leg
401WE20M10004 GE Panel
404WE20X27475 GE Side Panel
408WE20M429 GE Dryer Bottom Chassis
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
420WE20M381 GE Rear Panel 7.5 CF
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
456WE1X617 GE Pipe Clamp
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
804WE15X23605 GE Gas Harness Assembly
850WE15X23606 GE Gas Harness Right
3402WE13X21164 GE UI Bracket
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
