GFD45ESSM0WW CABINET & TOP PANEL

GFD45ESSM0WW CABINET & TOP PANEL

Written by

in

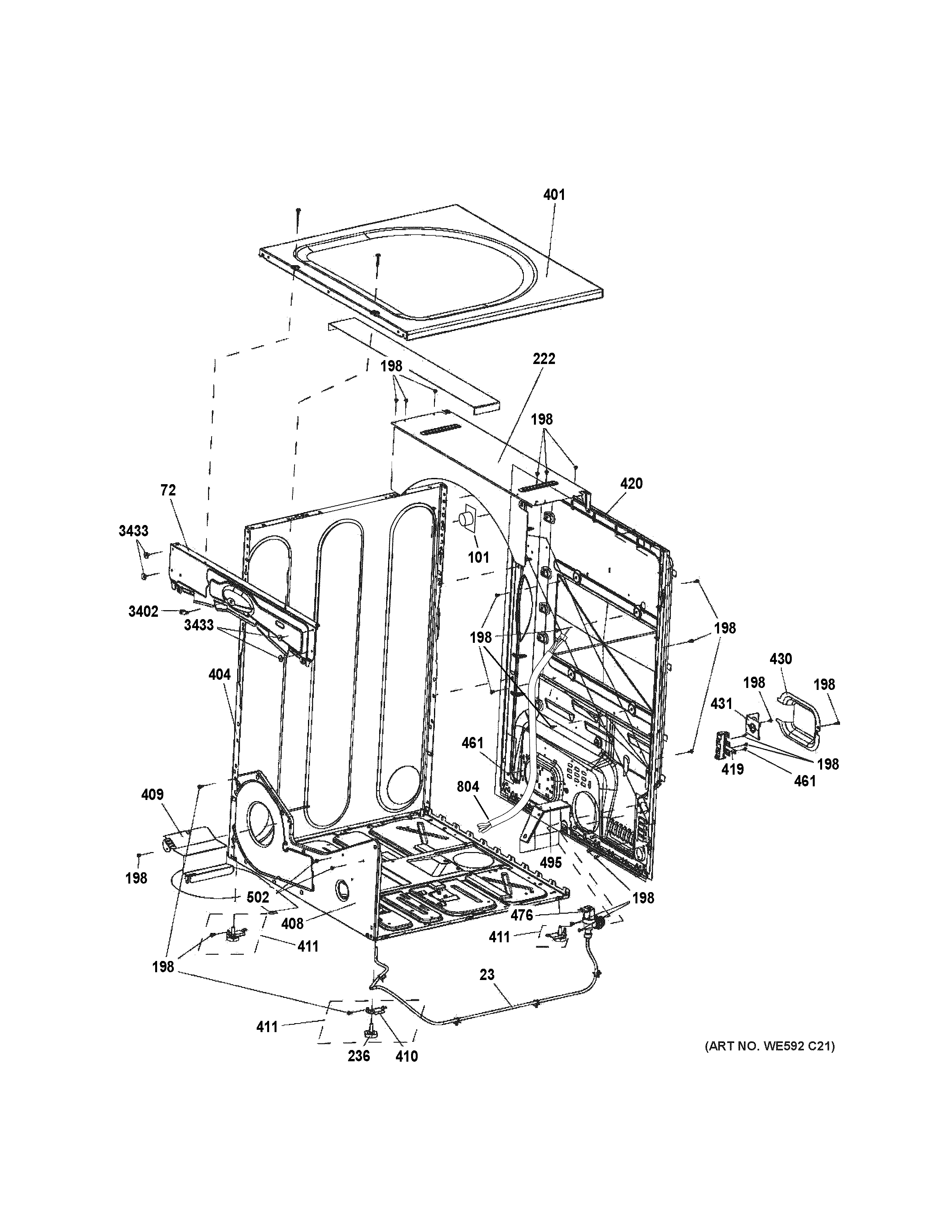

GFD45ESSM0WW CABINET & TOP PANEL

Products

PositionProduct
23WE1M1105 GE Mist Hose
72WE01X21163 GE Front Shield
101WE01X21176 GE Board
198WE01X25535 GE Screw
222REAR PLATE
236WE1M642 GE Washer Leveling Leg
401WE20M10004 GE Panel
404WE20X27475 GE Side Panel
408WE20M429 GE Dryer Bottom Chassis
409SHIELD THERMOSTAT
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE20M381 GE Rear Panel 7.5 CF
430WE1M1102 GE Washer Cover Terminal Block
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
502WE2M174 GE Screw #10
804WE15X23358 GE Electrode Harness Assembly
3402WE13X21164 GE UI Bracket
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
