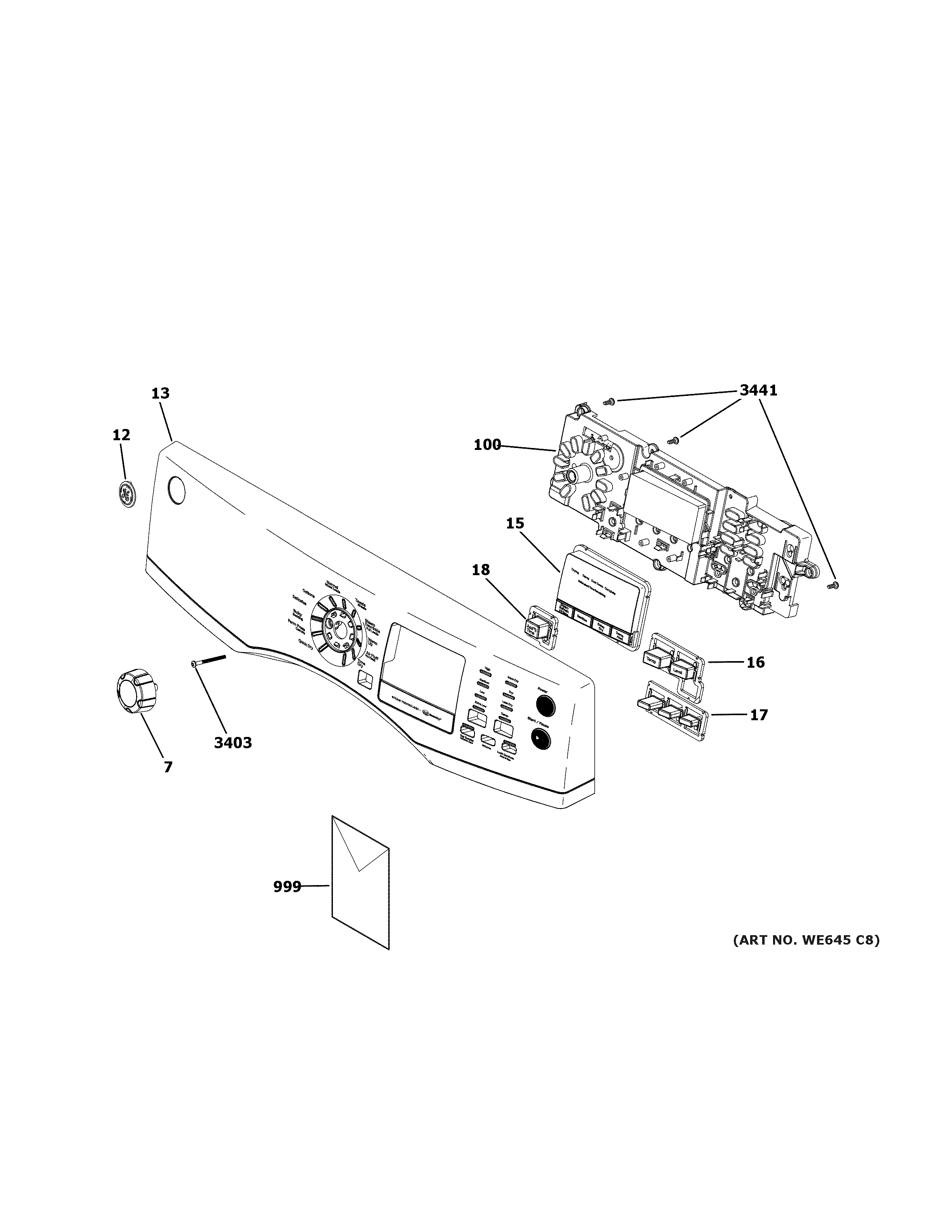

GFD45ESSM1WW CONTROL PANEL

GFD45ESSM1WW CONTROL PANEL

Written by

in

GFD45ESSM1WW CONTROL PANEL

Products

PositionProduct
7WE01X21167 GE Washer Knob
12BADGE
13WE20X27598 GE Control Panel Assembly
15WE04X25134 GE Washer Display and Buttons Assembly
16WE04X28678 GE Button Temp/Level Assembly
17WE22X29237 GE Button Edry-Volume-Lock Assembly
18WE04X26634 GE ADD Time Button Assembly
100WE04X29099 GE Chassis and Board Assembly
999PUB NUMBER MANUAL USE AND CARE
999PUB NUMBER MINI MANUAL
999PM INSTALLATION INSTRUCT
3403WE2M264 GE Knob Center Screw Assembly
3441WE2M211 GE Front Screw
