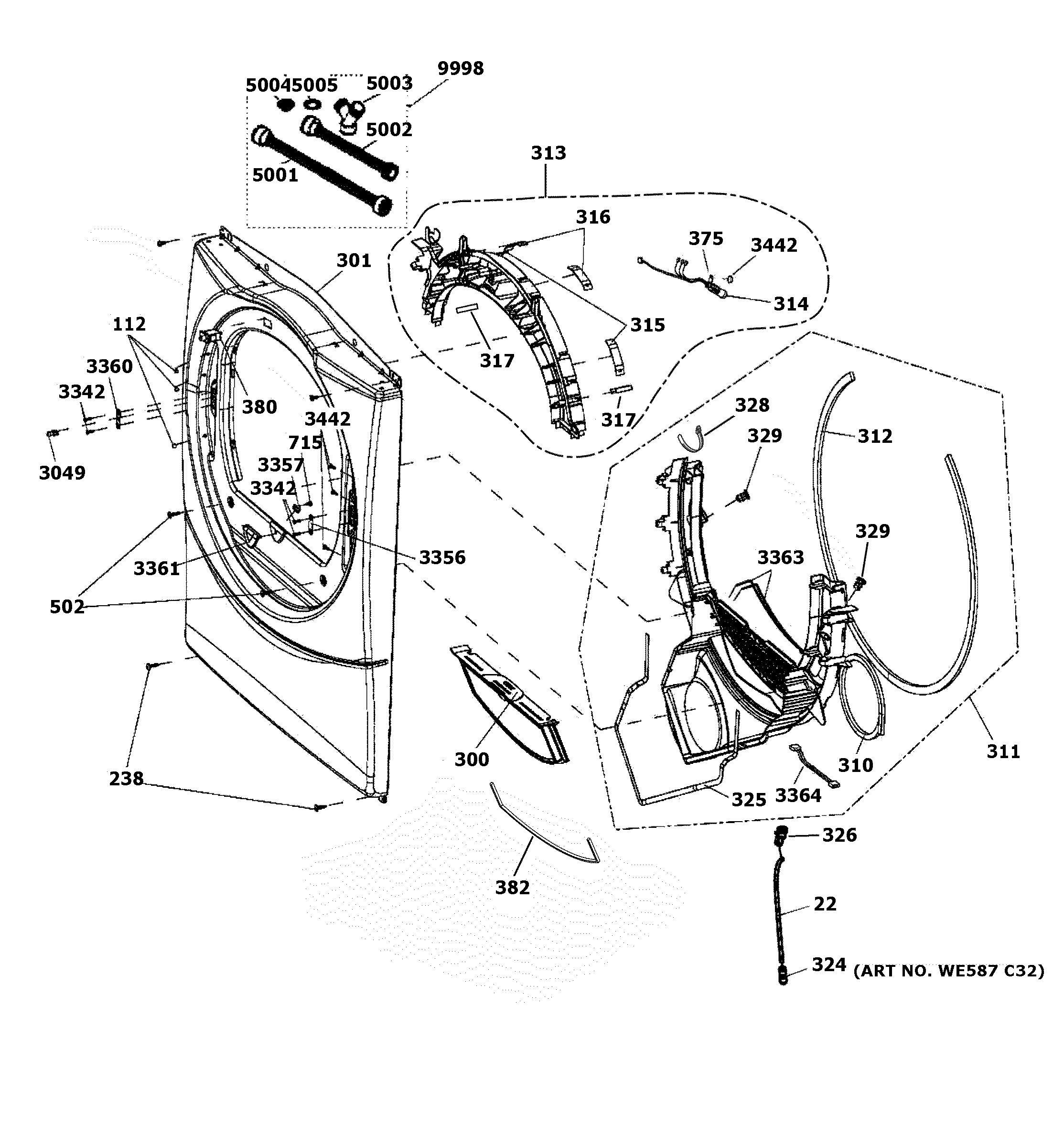

GFD45ESSM1WW FRONT PANEL

GFD45ESSM1WW FRONT PANEL

Written by

in

GFD45ESSM1WW FRONT PANEL

Products

PositionProduct
22WE1M1099 GE Mist Hose
112WE1M934 GE Plug Button White
238WE2M225 GE Screw White #10-16 3/4
300FILTER AND MESH ASM
301WE20M444 GE Front Panel White
310WE09X20569 GE Gasket
311WE14X25086 GE Duct Trap Assembly
312FELT TRAP DUCT
313TOP BEARING ASM
314WE05X20431 GE Washer Dryer 120V 10W Light Bulb Lamp
315WE03X37319 GE Dryer Bearing Slide 2-Pack
316WE03X37320 GE Dryer Bearing Slide 2-Pack
317WE09X27635 GE Felt Top Bearing
324CONNECTOR SERVICE
325WE14M119 GE Complete Trap Duct Assembly
326WE1M943 GE Nozzle and Elbow Assembly
328WE01X25834 GE Plastic Belt
329CAP BLIND
375WE04X22494 GE Harness Top Bearing Assembly
380WE4M415 GE Washer Door Switch
382WE01X25435 GE Felt Filter
502WE2M174 GE Screw #10
715WD2M101 GE Dishwasher Screw
3049WE01M10007 GE Washer Strike
3342WE1M582 GE Screw #8 X 5/8 Stainless Steel Door H
3356WE1M569 GE Strike Plate
3357WE2M213 GE Door Guide Nut Stripe
3360WE1M570 GE Strike Plate with Strike Hole
3361WE1M755 GE Door Guide
3363WE1M575 GE Washer Sensor Rods
3364HARNESS SENSORS
3442WE2M281 GE Screw 8-18 AB
5001WE1M847 GE Inlet Hose
5002WE25X20060 GE Steam Kit
5003WE01X10401 GE Y Adapter
5004WE1M850 GE Washer Hose Screen
5005WE1M851 GE Appliance Rubber Washer for Intake Hose
