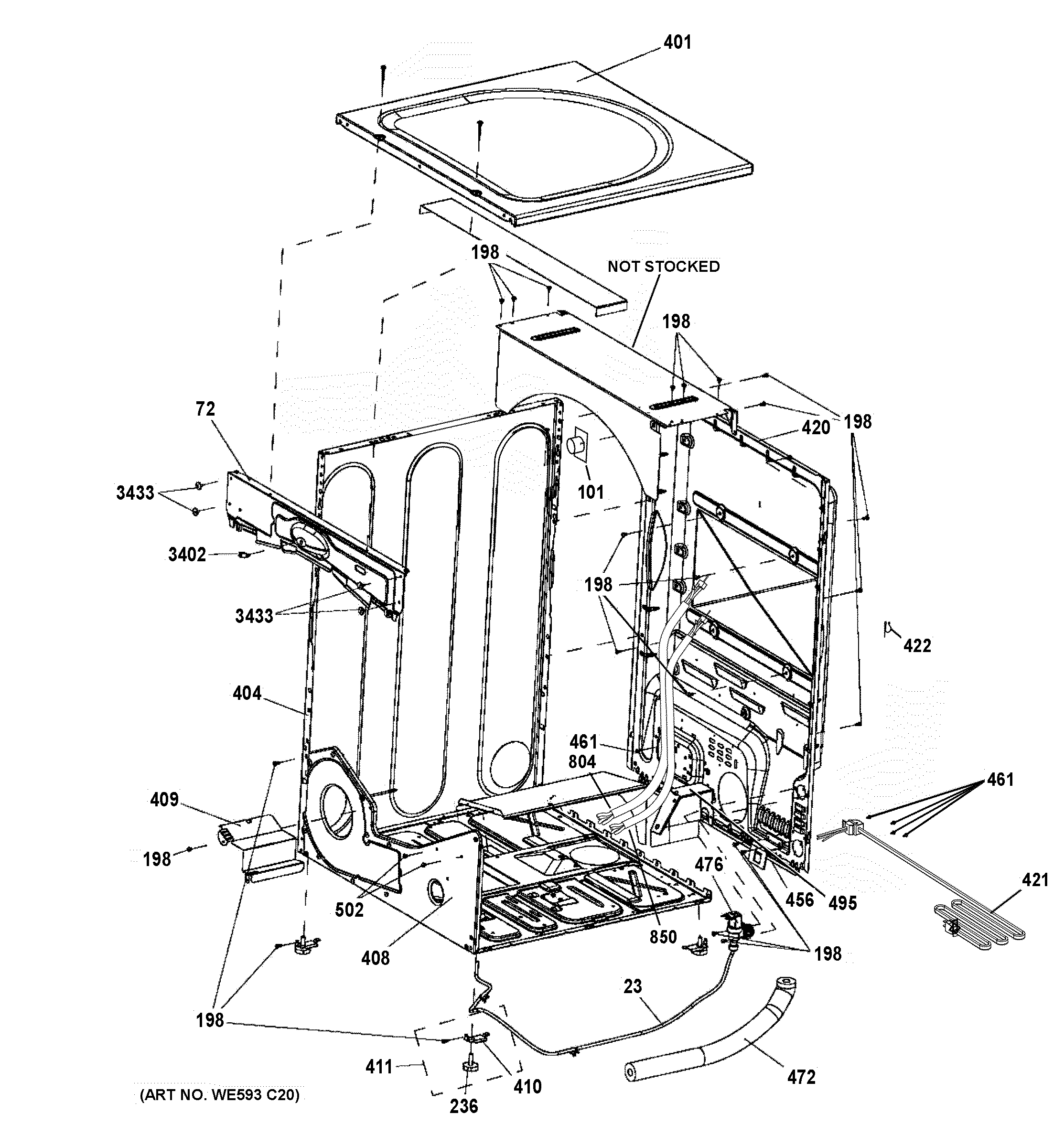

GFD45GSPM1DG CABINET & TOP PANEL

GFD45GSPM1DG CABINET & TOP PANEL

Written by

in

GFD45GSPM1DG CABINET & TOP PANEL

Products

PositionProduct
23WE1M1105 GE Mist Hose
72WE01X21163 GE Front Shield
101WE01X21176 GE Board
198WE01X25535 GE Screw
236WE1M642 GE Washer Leveling Leg
401WE20X21179 GE Dryer Top Panel
404WE20X21177 GE Side Panel
408WE20M429 GE Dryer Bottom Chassis
409SHIELD THERMOSTAT
410WE1M528 GE Level Leg Rear Bracket
411WE1M468 GE Leveling Screw Bracket
420WE20M381 GE Rear Panel 7.5 CF
421WE26M345 GE Gas Power Cord (120V)
422CLIP CORDSET
456WE1X617 GE Pipe Clamp
461WZ5X158D GE Screw Package of 12
472WE1M948 GE Dryer Water Tube Sleeve
476WE4M503 GE Water Valve
495WE1M933 GE Dryer Water Valve Shield
502WE2M174 GE Screw #10
804WE15X23359 GE Dryer Gas Harness
850WE26X22501 GE Dryer Gas Harness Right
3402WE13X21164 GE UI Bracket
3433WE2M278 GE Screw 8-18 AB PNQ2 1/4 S Z
