GFD48GSPK0DG BLOWER & MOTOR

GFD48GSPK0DG BLOWER & MOTOR

Written by

in

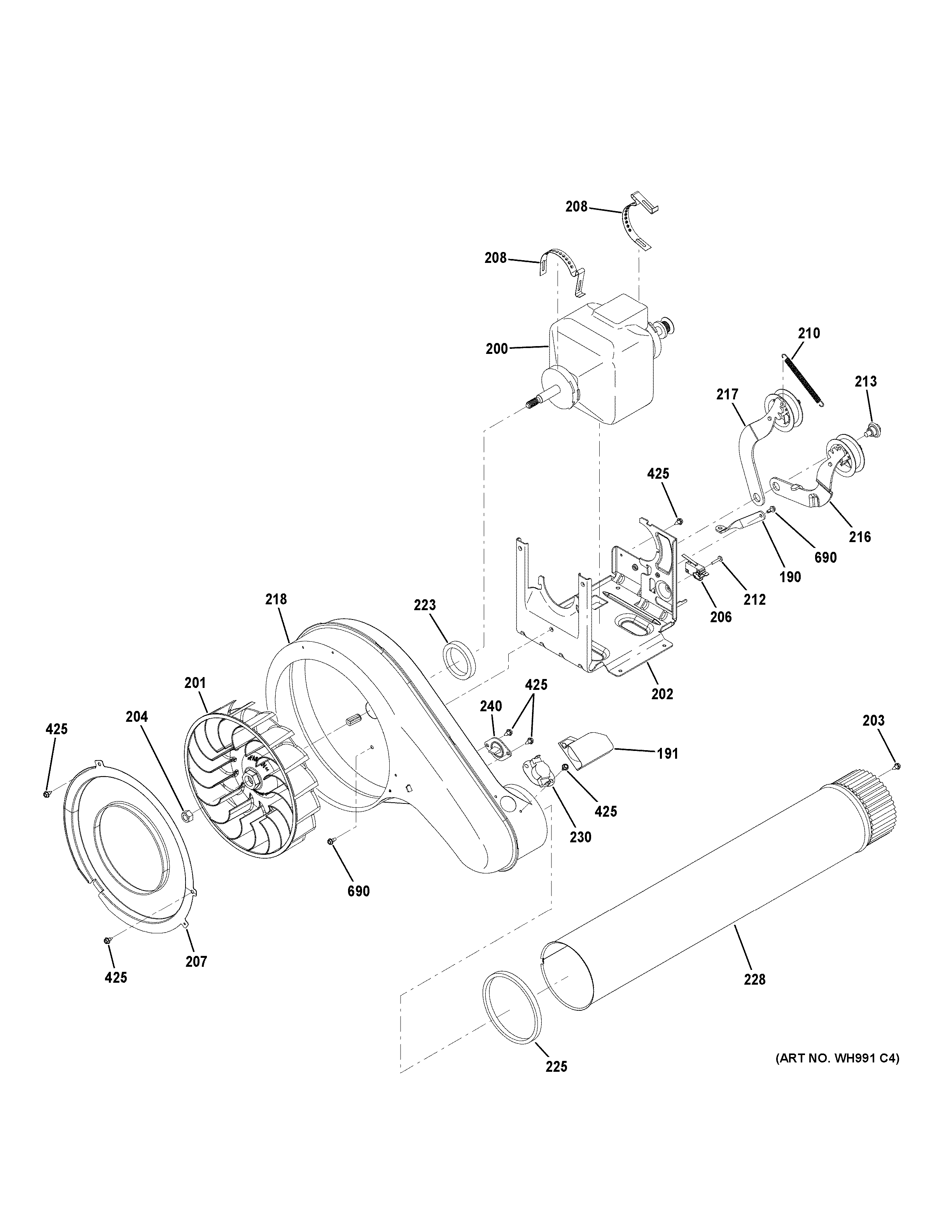

GFD48GSPK0DG BLOWER & MOTOR

Products

PositionProduct
190WE13X20689 GE Motor Bracket Strap
191WE02X20690 GE Thermostat Shield
200WE17X25555 GE Drive Motor
201WE16X33977 GE Blower Wheel Assembly
202WE13X10051 GE Motor Drive Bracket
203WH02X10396 GE Screw 10-16 B HXW 3/8 S
204WE01X10372 GE Hex Steel Nut
206WE04X10184 GE Idler Switch
207WE14X10107 GE Inlet Valve Assembly
208CLIP RESILIENT MOUNT
210WE01X10374 GE Idler Spring
212WE02X10105 GE Scr 4-24 Ab Pnp .682 Ss
213PIVOT SHOULDER BOLT
216WE12X10018 GE Idler Assembly (Left Hand)
217WE12X10019 GE Idler Assembly (Right Hand)
218WE14X20691 GE Fan Scroll Assembly
223WE09X10026 GE Blower Seal
225FAN SEAL
228WE14X10111 GE Exhaust Duct
230THERMOSTAT 2
240WE04X22054 GE Outlet Thermistor
425WE02X10106 GE Screw 8-18 AB HxW 3/8 S
690WZ5X158D GE Screw Package of 12
