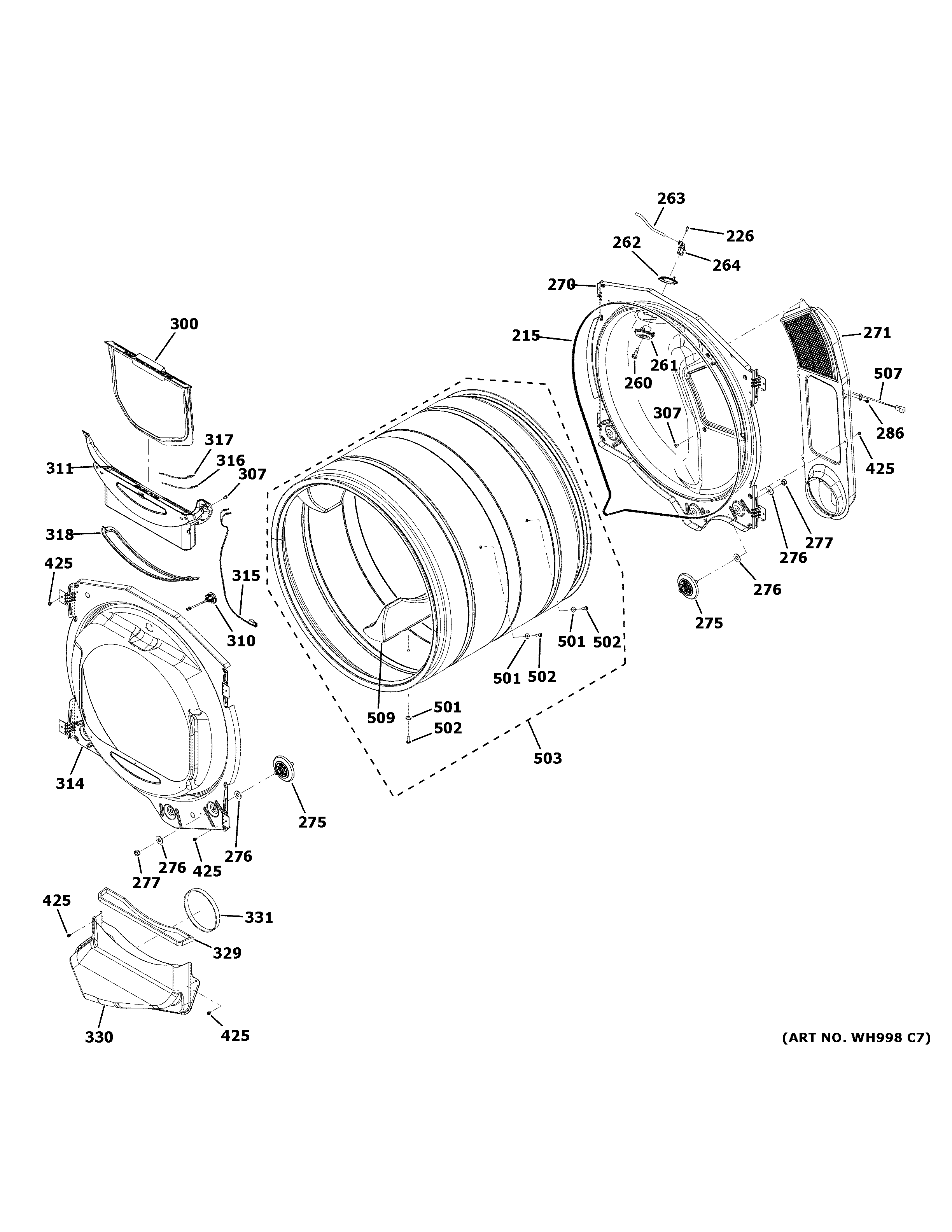

GFD48GSSK0WW DRUM

Products

Position	Product
215	WE12X10020 GE Washer Drive Belt
226	WH2X1205 GE Screw 8-18
260	WE01X10394 GE Mist Nozzle
261	WE01X10396 GE Nozzle Cover
262	WE01X10398 GE Nozzle Cover Retainer
263	WE01X10397 GE Steam Tube
264	WE01X10395 GE Steam Elbow
270	WE20X10154 GE Rear Drum Support
271	DUCT SUPPLY SUB ASM
275	ROLLER ASM WHEEL
276	WE01X10379 GE Dryer Steel Washer
277	WE01X10393 GE Steel Hex Nut
286	WH2X930 GE Screw
300	WE18X20428 GE Lint Screen Assembly
307	WE02X20373 GE Screw 8-18 AB PNT 15/2"
310	WH12X10574 GE Tub Light
311	WE18X25560 GE Grille Assembly
314	SUPPORT DRUM FRONT
315	WE08X10087 GE Sensor Rod Harness
316	WE01X22114 GE Sensor Rod
317	WE01X22074 GE Washer Rod Sensor
318	WE09X10032 GE Fan Seal
329	WE09X10030 GE Duct Assembly Seal Trap
330	WE18X10022 GE Duct Trap Assembly
331	WE09X10029 GE Fan Seal
425	WE02X10106 GE Screw 8-18 AB HxW 3/8 S
501	WE01X20693 GE Washer Baffle
502	WH2X1194 GE Screw 10-18 PL
503	WE21X10026 GE Drum Assembly
507	THERMISTOR INLET
509	WE14X10112 GE Baffle
