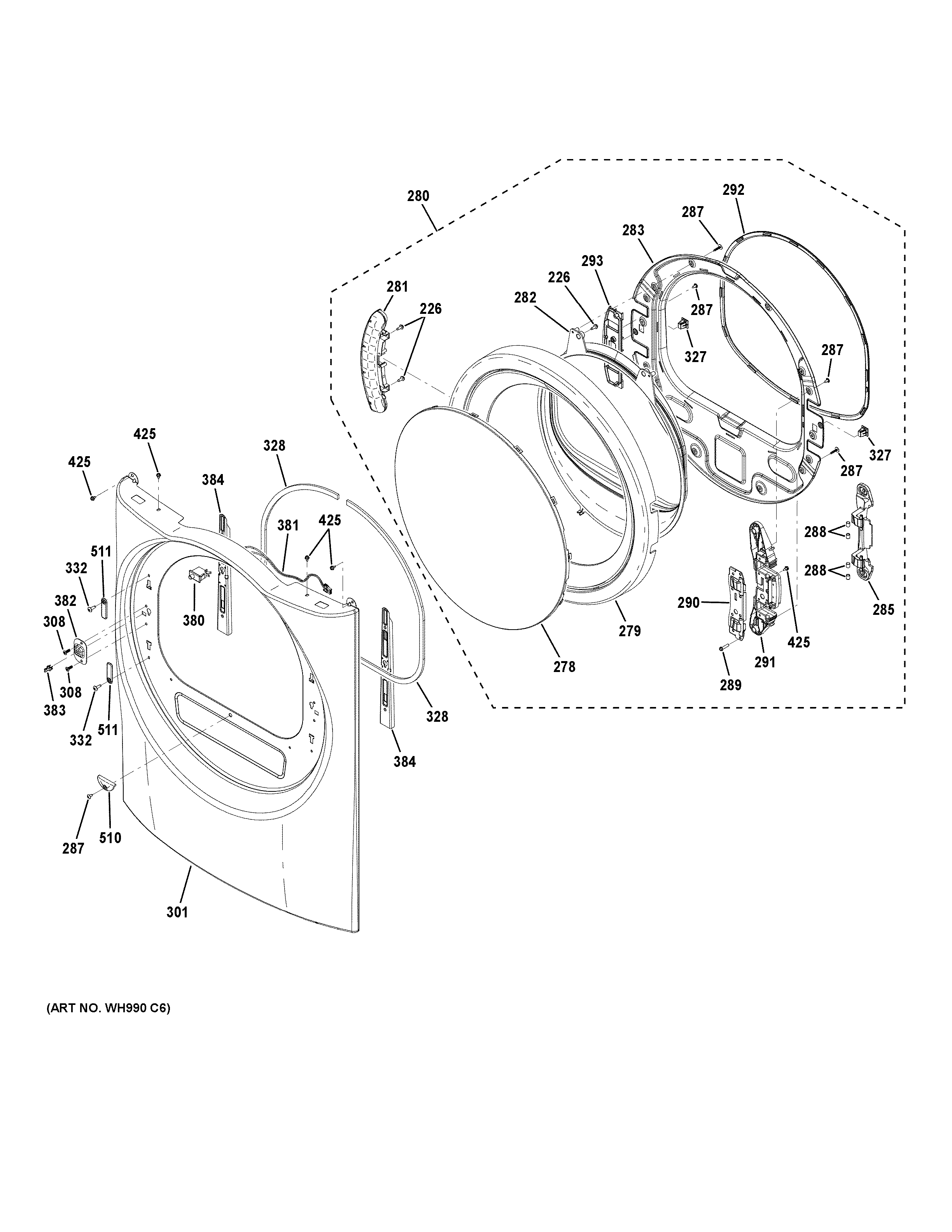

GFD48GSSK0WW FRONT PANEL & DOOR

GFD48GSSK0WW FRONT PANEL & DOOR

Written by

in

GFD48GSSK0WW FRONT PANEL & DOOR

Products

PositionProduct
226WH2X1205 GE Screw 8-18
278WH44X21159 GE Door Cover Protector
279WH46X10284 GE Door Cover
280WE10X10030 GE Door Assembly
281WH01X10725 GE Door Handle
282MASK DOOR
283WE10X10029 GE Door Frame and Glass Assembly
285WH01X10723 GE Hinge
287WH02X10394 GE Screw 8-18 AB TRQ 5/8 Stainless Steel
288WH01X10722 GE Hinge Bushing
289WB1K5157 GE Oven Black Screw
290WH01X10724 GE Hinge Plate
291WE13X21096 GE Hinge Bracket
292WE09X23434 GE Door Seal
293SPACER DOOR
301PANEL FRONT ASM (WH)
308WR01X10379 GE Refrigerator Hinge Cover Screw
327WE01X10409 GE Door Latch
328WE09X10027 GE Front Panel Seal
332WH02X10139 GE Screw 10-32 B TRT-25 5/8
380WE04X10180 GE Door Switch
381WE08X10085 GE Door Switch Harness
382WE13X10053 GE Striker Bracket
383WE01X10377 GE Door Striker
384STIFFENER HINGE
425WE02X10106 GE Screw 8-18 AB HxW 3/8 S
510WE01X10405 GE Door Guide
511WE01X10406 GE Plug Panel
