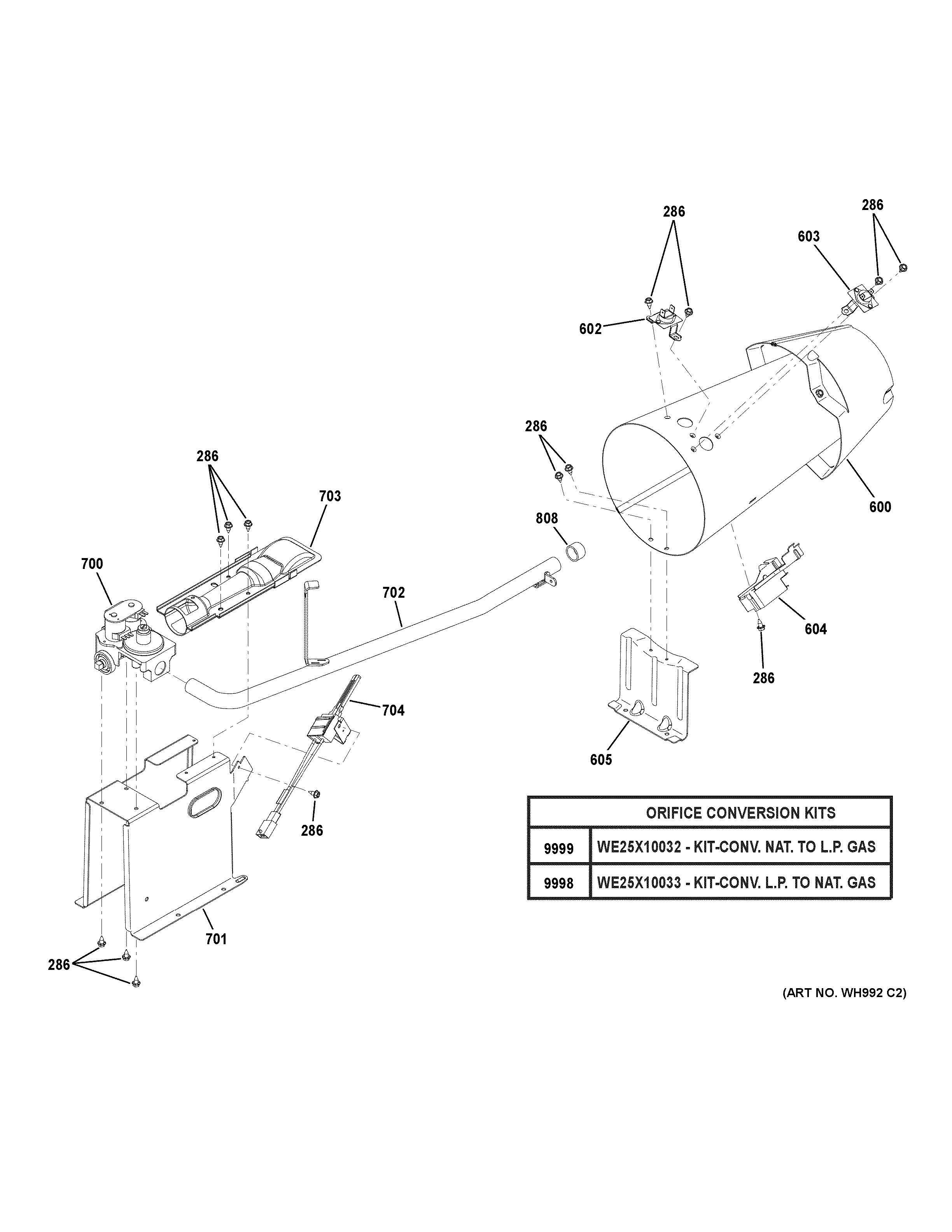

GFD48GSSK0WW GAS VALVE & BURNER ASSEMBLY

GFD48GSSK0WW GAS VALVE & BURNER ASSEMBLY

Written by

in

GFD48GSSK0WW GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
286WH2X930 GE Screw
600CHAMBER ASM
602WE04X10188 GE Inlet Thermostat
603WE04X10187 GE High Limit Thermostat
604WE04X10189 GE Dryer Radiant Sensor
605BRACKET CHAMBER COMB.
700WE14X10109 GE Gas Valve
701WE13X10050 GE Burner Bracket
702WE01X10373 GE Gas Pipe Assembly
703WE14X10110 GE Burner Assembly
704WE04X10183 GE Washer Flat Igniter
808WE01X10402 GE Gas Pipe Thread Cap
9998WE25X10033 GE Kit Conversion LP to Natural Gas
9999WE25X10032 GE Conversion Kit Natural to LP Gas
