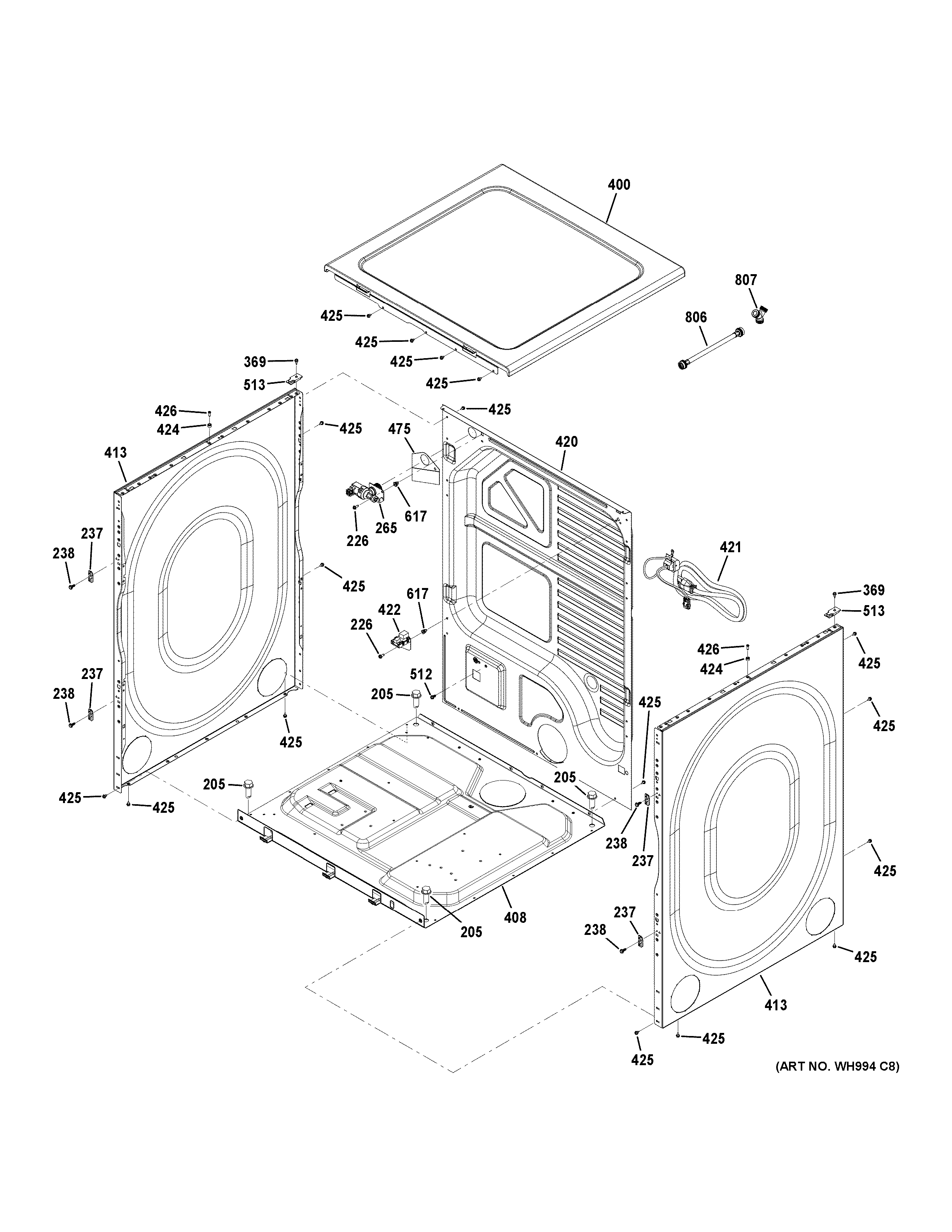

GFD49GRPK0DG CABINET & TOP PANEL

Products

Position	Product
205	WH02X10397 GE Riser Bolt Attachment
226	WH2X1205 GE Screw 8-18
237	WH01X10733 GE Front Support Pin
238	WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
265	WE04X10186 GE Steam Valve
369	WH2X1217 GE Screw Assembly
400	WH44X26020 GE Top Panel Assembly
408	BASE ASM
413	WE20X26054 GE Side Panel
420	PANEL REAR
421	WE08X10083 GE Gas Power Cord
422	WH12X28437 GE RJ45 Assembly
424	WE01X10407 GE Top Panel Bushing
425	WE02X10106 GE Screw 8-18 AB HxW 3/8 S
426	WB01T10115 GE Oven Screw 1/2" 8-18 AB HW
475	WE01X10383 GE Water Valve Shield
512	WE02X10107 GE Screw 10-32 GX HXW 7/16 S
513	WE01X10408 GE Top Panel Holder
617	WR2X8349 GE Screw Grommet
806	HOSE INLET ASM
807	WE01X10401 GE Y Adapter
