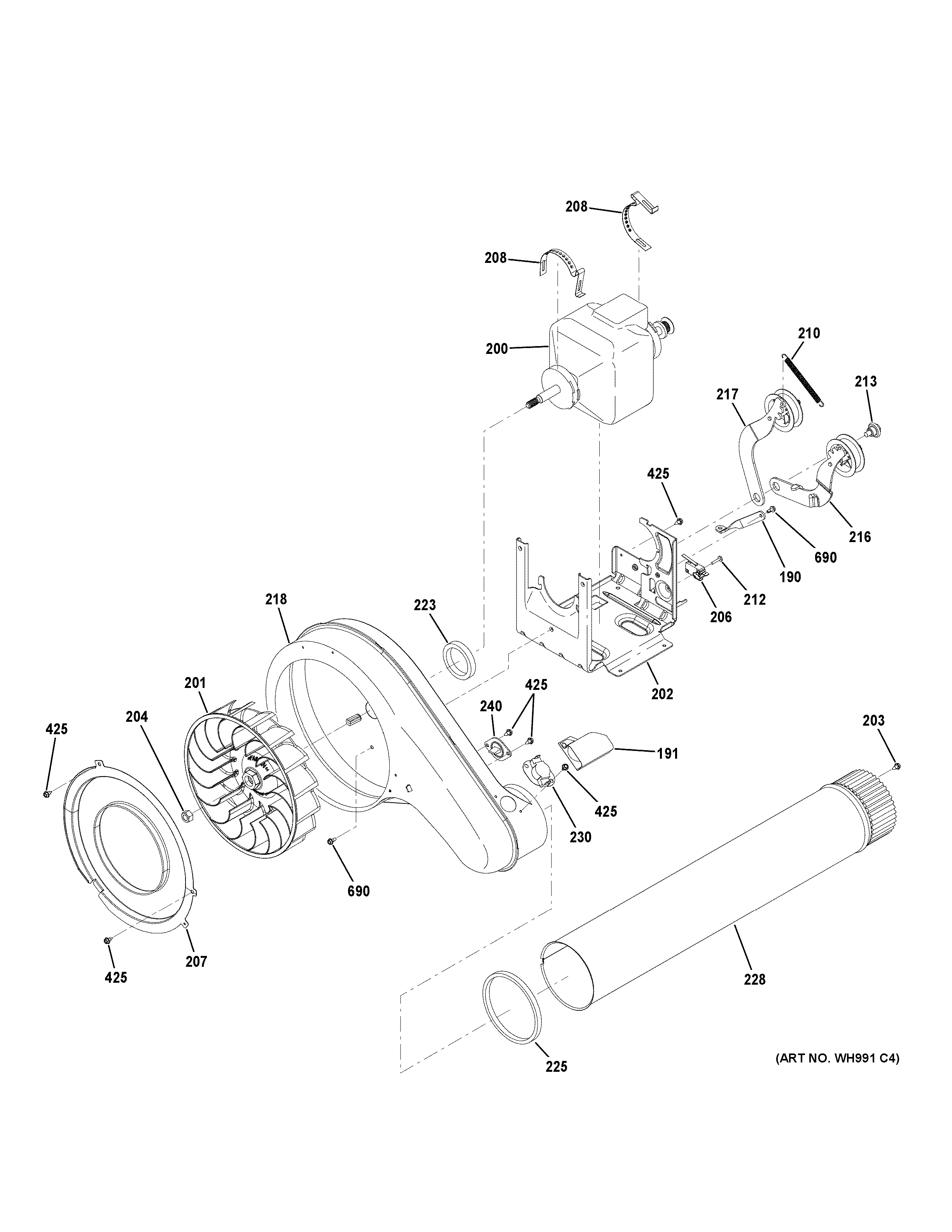

GFD49GRSK0WW BLOWER & MOTORadmin2025-04-26T10:27:33+00:00GFD49GRSK0WW BLOWER & MOTOR ProductsPositionProduct190WE13X20689 GE Motor Bracket Strap191WE02X20690 GE Thermostat Shield200WE17X25555 GE Drive Motor201WE16X33977 GE Blower Wheel Assembly202WE13X10051 GE Motor Drive Bracket203WH02X10396 GE Screw 10-16 B HXW 3/8 S204WE01X10372 GE Hex Steel Nut206WE04X10184 GE Idler Switch207WE14X10107 GE Inlet Valve Assembly208CLIP RESILIENT MOUNT210WE01X10374 GE Idler Spring212WE02X10105 GE Scr 4-24 Ab Pnp .682 Ss213PIVOT SHOULDER BOLT216WE12X10018 GE Idler Assembly (Left Hand)217WE12X10019 GE Idler Assembly (Right Hand)218WE14X20691 GE Fan Scroll Assembly223WE09X10026 GE Blower Seal225FAN SEAL228WE14X10111 GE Exhaust Duct230THERMOSTAT 2240WE04X22054 GE Outlet Thermistor425WE02X10106 GE Screw 8-18 AB HxW 3/8 S690WZ5X158D GE Screw Package of 12
