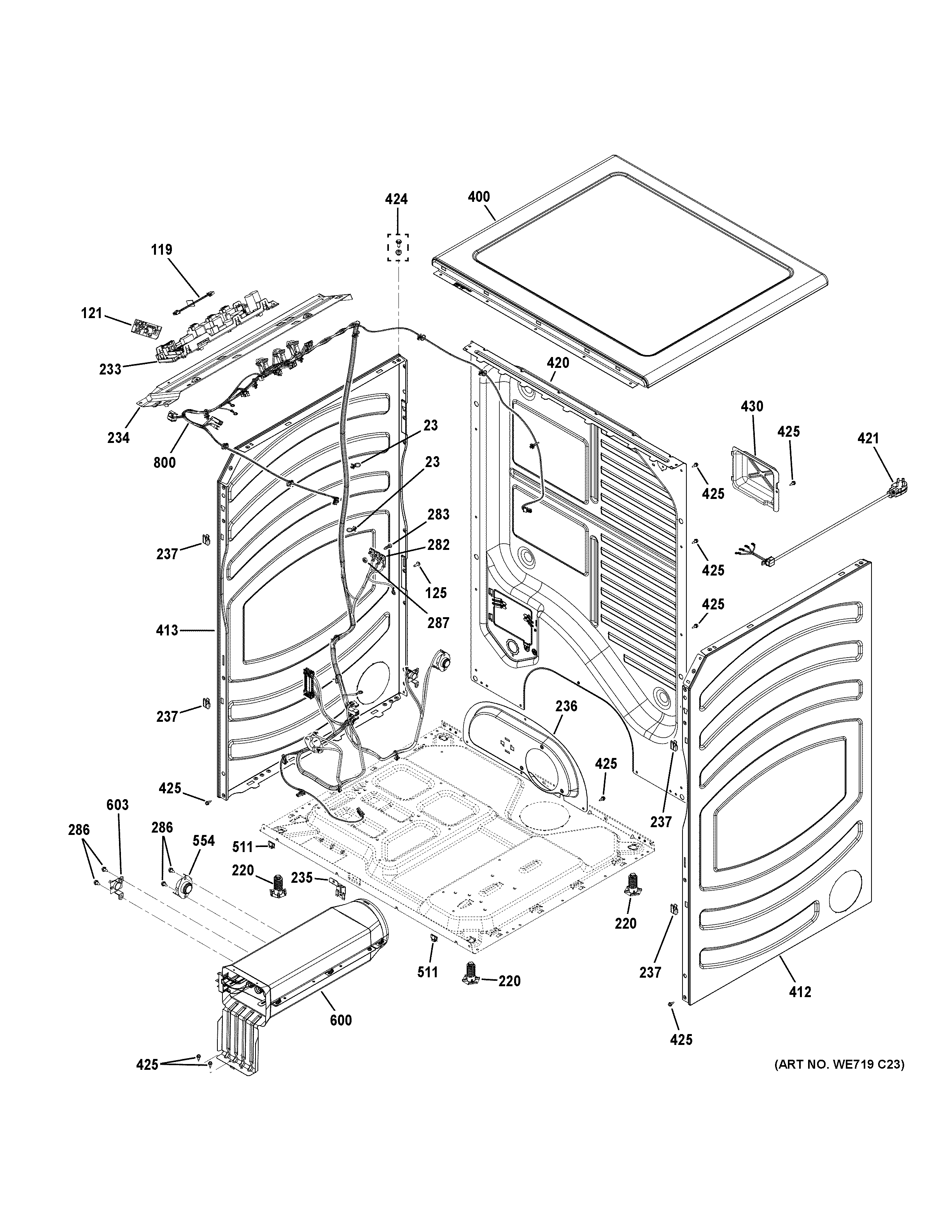

GFD55ESMN3WW CABINET & TOP PANEL

GFD55ESMN3WW CABINET & TOP PANEL

Written by

in

GFD55ESMN3WW CABINET & TOP PANEL

Products

PositionProduct
23WH01X10704 GE Wire Tie
119WE08X29733 GE WiFi Jumper Harness
121WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions
125WE02X10107 GE Screw 10-32 GX HXW 7/16 S
220WE01X29697 GE Washer Leveling Leg
233WE22X38277 GE Dryer Main Control Board
234WE13X29701 GE Main Board Bracket
235DUCT TRAP BRACKET
236WE13X29699 GE Access Panel
237WE02X29690 GE Panel Clip
282WE04X31779 GE Terminal Block
283WE02X34497 GE Screw Terminal Block
286WH2X930 GE Screw
287WE02X34498 GE Terminal Block Nut
400WE10X30584 GE White Top Panel
412SIDE PANEL WHITE RIGHT
413WE10X29743 GE Left Side Panel White
420WE13X30588 GE Rear Panel
421WE08X32337 GE Electric Power Cord
424WH02X31377 GE Screw and Bushing Guide
425WH2X1217 GE Screw Assembly
430WE13X29740 GE Terminal Block Cover
511PANEL CLIP
554WE04X29792 GE Inlet Thermostat Backup
600WE11X29790 GE Electric Heater
603WE04X29793 GE High Limit Thermostat
800WE08X32439 GE Electric Main Harness
