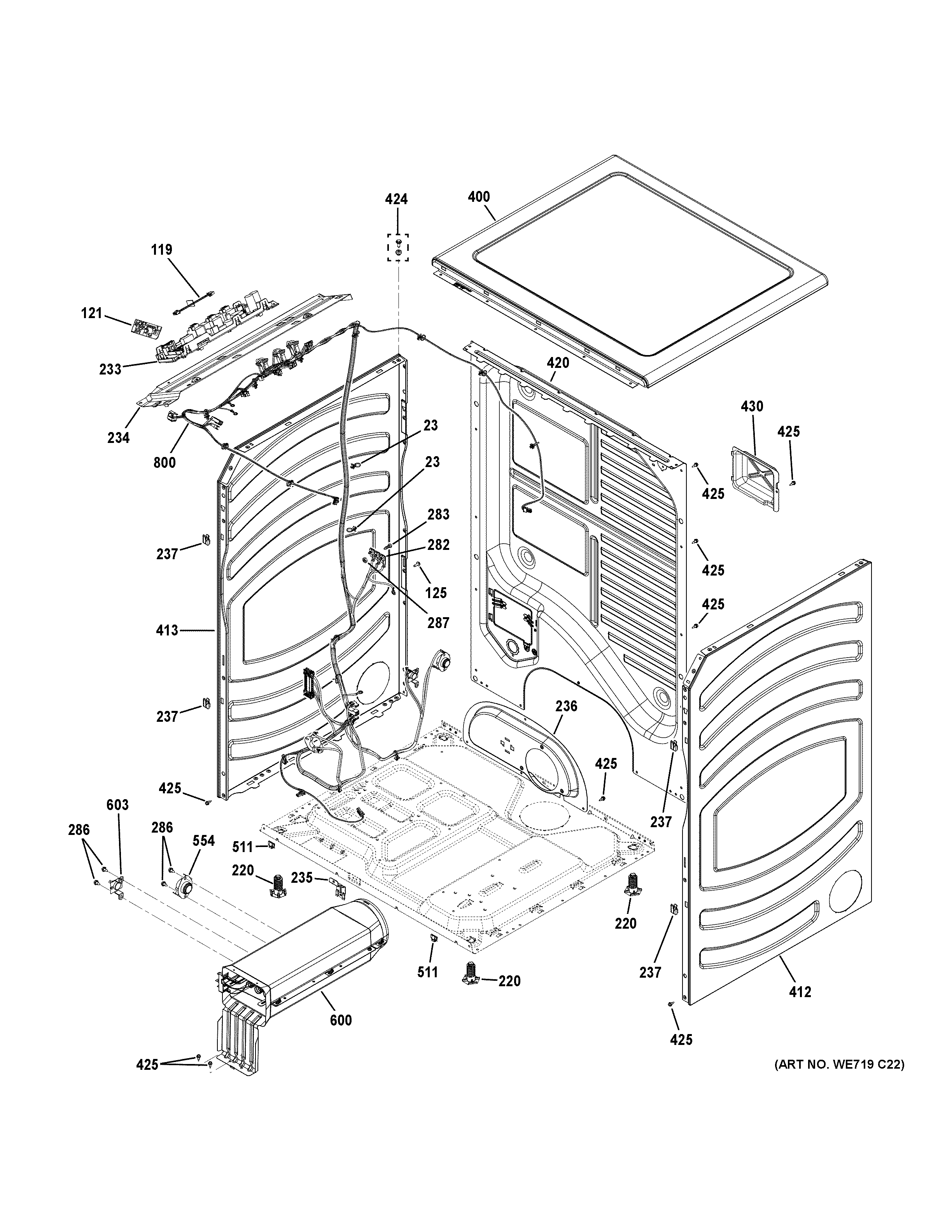

GFD55ESSN2WW CABINET & TOP PANELadmin2025-04-26T10:29:05+00:00GFD55ESSN2WW CABINET & TOP PANEL ProductsPositionProduct23WH01X10704 GE Wire Tie119WE08X29733 GE WiFi Jumper Harness121WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions125WE02X10107 GE Screw 10-32 GX HXW 7/16 S220WE01X29697 GE Washer Leveling Leg233WE22X38277 GE Dryer Main Control Board234WE13X29701 GE Main Board Bracket235DUCT TRAP BRACKET236WE13X29699 GE Access Panel237WE02X29690 GE Panel Clip282WE04X31779 GE Terminal Block283WE02X34497 GE Screw Terminal Block286WH2X930 GE Screw287WE02X34498 GE Terminal Block Nut400WE10X30584 GE White Top Panel412SIDE PANEL WHITE RIGHT413WE10X29743 GE Left Side Panel White420WE13X30588 GE Rear Panel424WH02X31377 GE Screw and Bushing Guide425WH2X1217 GE Screw Assembly430WE13X29740 GE Terminal Block Cover511PANEL CLIP554WE04X29792 GE Inlet Thermostat Backup600WE11X29790 GE Electric Heater603WE04X29793 GE High Limit Thermostat800WE08X32439 GE Electric Main Harness
