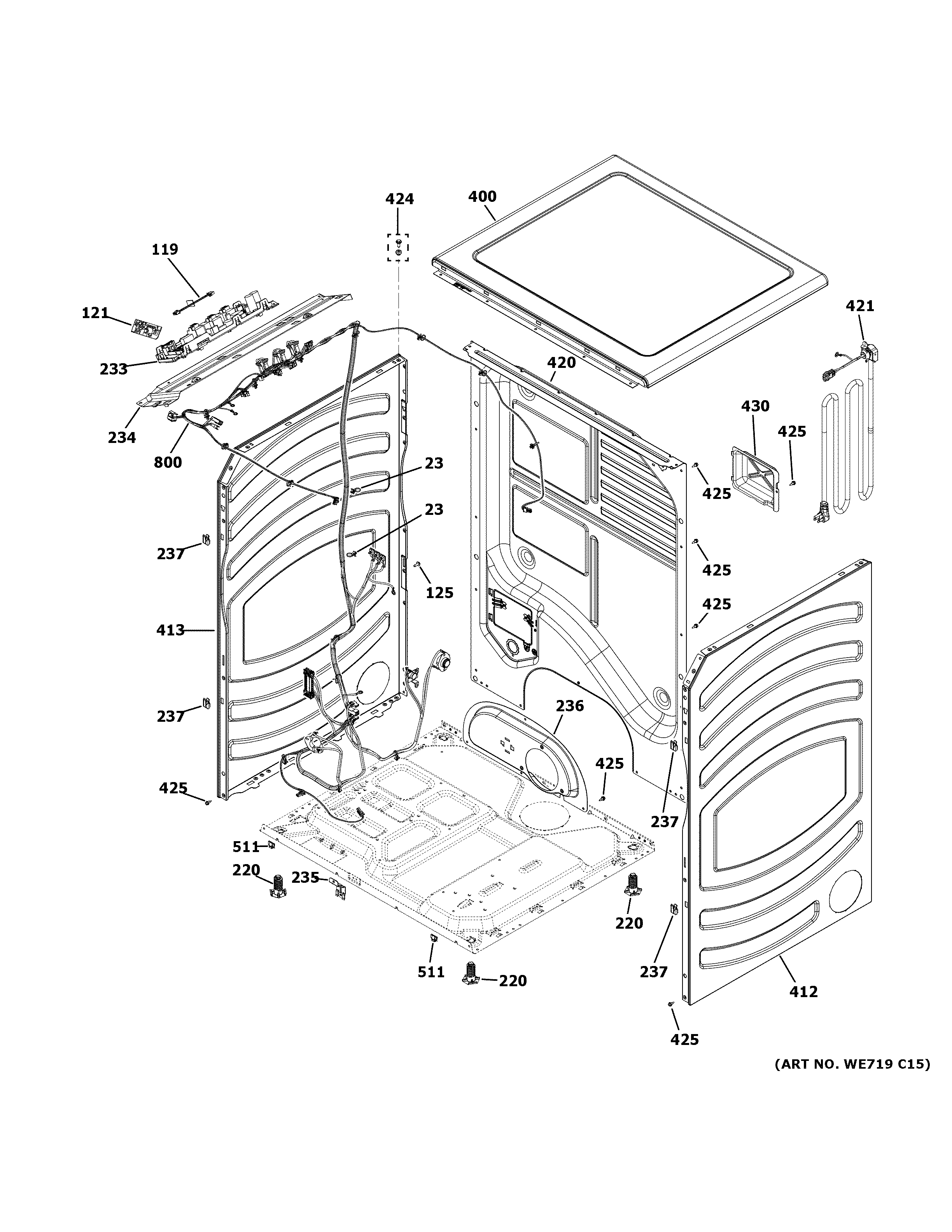

GFD55GSPR1RS CABINET & TOP PANEL

GFD55GSPR1RS CABINET & TOP PANEL

Written by

in

GFD55GSPR1RS CABINET & TOP PANEL

Products

PositionProduct
23WH01X10704 GE Wire Tie
119WE08X29733 GE WiFi Jumper Harness
121WH22X33297 GE Wifi Board with Instructions
125WE02X10107 GE Screw 10-32 GX HXW 7/16 S
220WE01X29697 GE Washer Leveling Leg
233WE22X38277 GE Dryer Main Control Board
234WE13X29701 GE Main Board Bracket
235DUCT TRAP BRACKET
236WE13X29699 GE Access Panel
237WE02X29690 GE Panel Clip
400WE10X30587 GE Top Panel Royal Sapphire
412SIDE PANEL SAPPHIRE BLUE RIGHT
413SIDE PANEL SAPPHIRE BLUE LEFT
420WE13X30588 GE Rear Panel
421WE08X29689 GE Power Cord
424WH02X31377 GE Screw and Bushing Guide
425WH2X1217 GE Screw Assembly
430WE13X29740 GE Terminal Block Cover
511PANEL CLIP
800WE08X32440 GE Gas Main Harness
