GFD55GSSN1WW CONTROLS & BACKSPLASH

GFD55GSSN1WW CONTROLS & BACKSPLASH

Written by

in

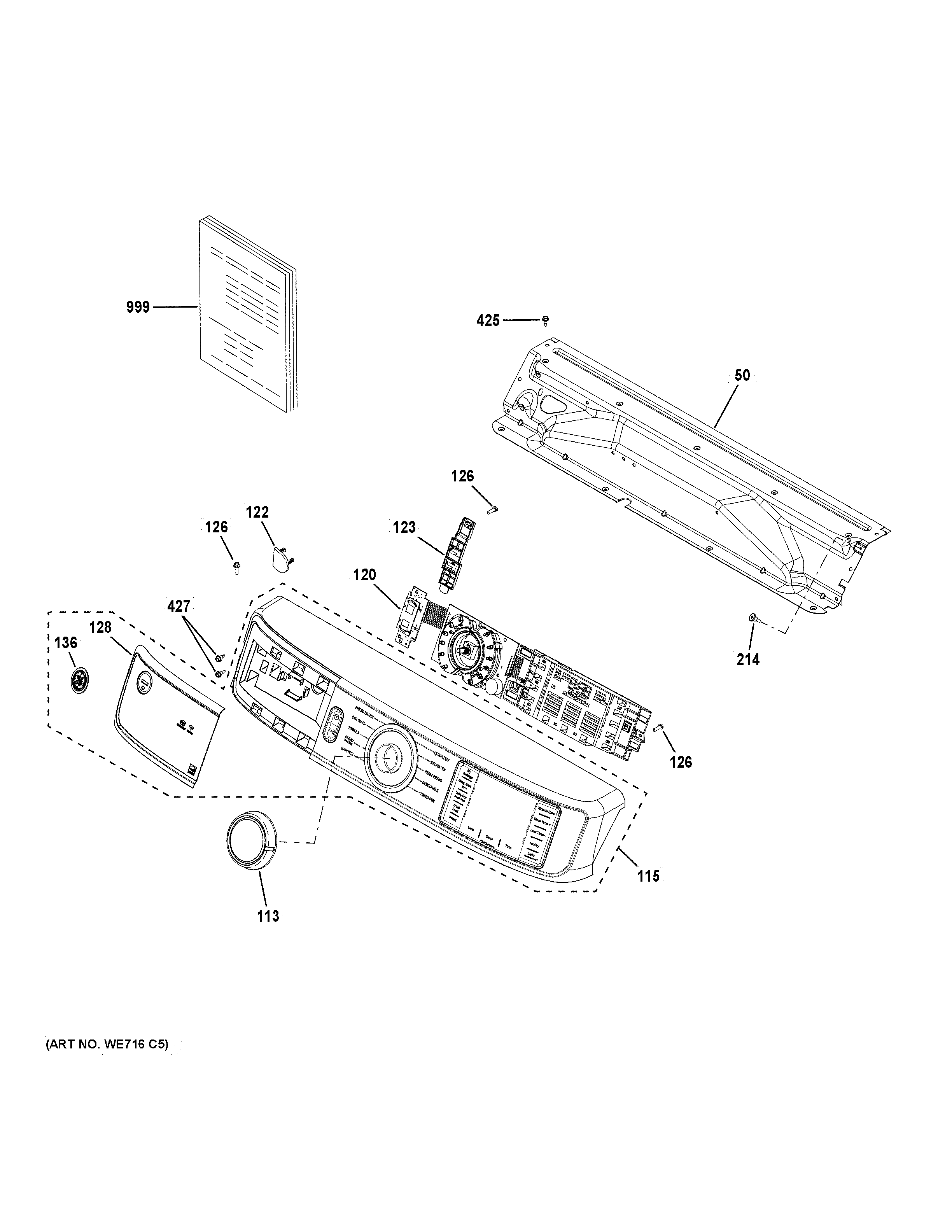

GFD55GSSN1WW CONTROLS & BACKSPLASH

Products

PositionProduct
50WE13X29585 GE Control Panel Front Bracket
113WE01X29707 GE Selector Knob
115WE13X29596 GE White Control Panel LE
120WE22X37717 GE Front Load Dryer User Interface Board
122WE01X29590 GE White Screw Cover
123WE13X29586 GE Power/START Button Bracket
126WR01X10196 GE Refrigerator Screw 8-18 HID02
128WH01X30840 GE Facia and Badge LE White
136GE BADGE
214SHOULDER SCREW M4
425WH2X1217 GE Screw Assembly
427WH02X31877 GE Screw 10-32 GX HXW 7/16"
999PM QUICK INSTALL
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
