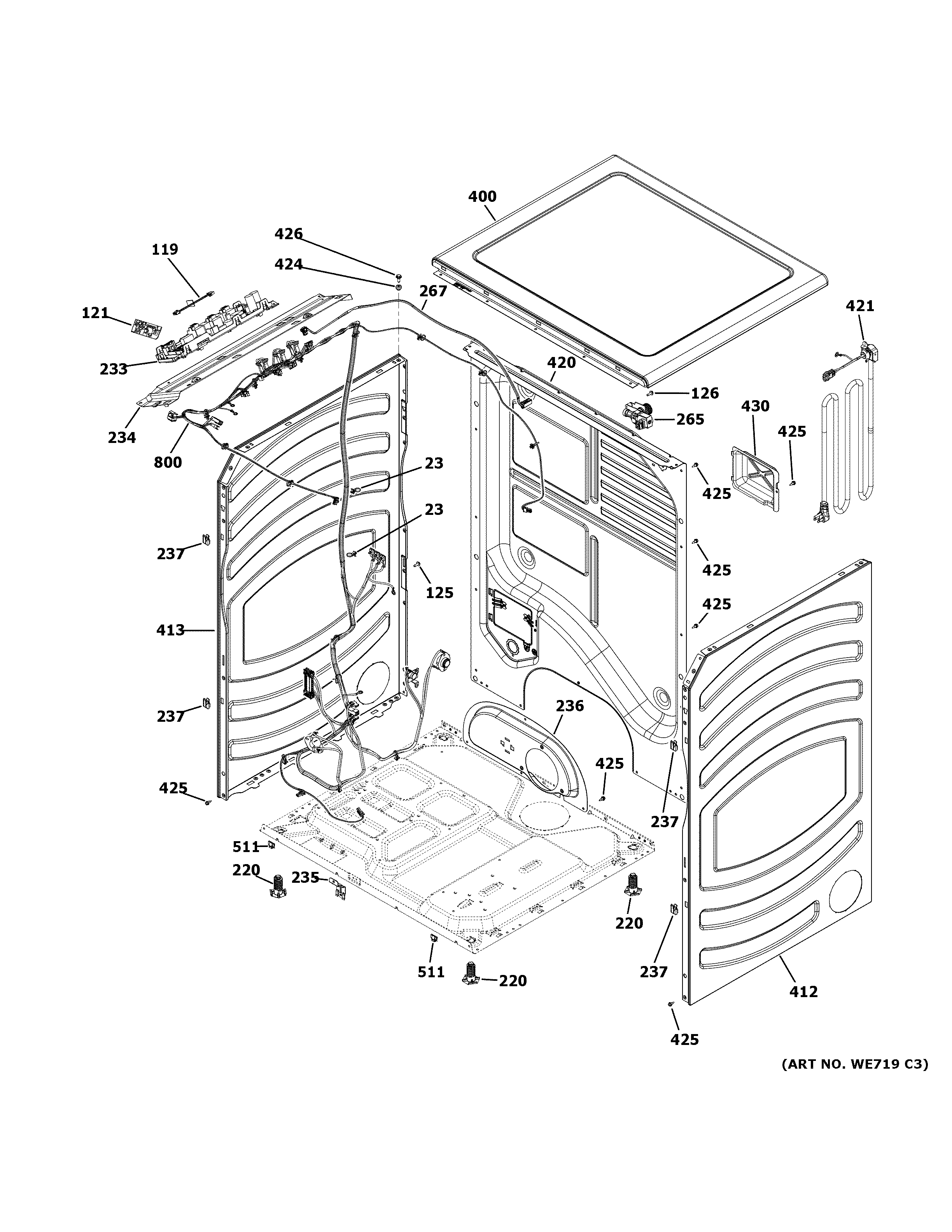

GFD65GSPN0SN CABINET & TOP PANEL

GFD65GSPN0SN CABINET & TOP PANEL

Written by

in

GFD65GSPN0SN CABINET & TOP PANEL

Products

PositionProduct
23WH01X10704 GE Wire Tie
119WE08X29733 GE WiFi Jumper Harness
121WH22X36577 GE Wi-Fi and Bluetooth Board with Instructions
125WE02X10107 GE Screw 10-32 GX HXW 7/16 S
126WR01X10196 GE Refrigerator Screw 8-18 HID02
220WE01X29697 GE Washer Leveling Leg
233WE22X38277 GE Dryer Main Control Board
234WE13X29701 GE Main Board Bracket
235DUCT TRAP BRACKET
236WE13X29699 GE Access Panel
237WE02X29690 GE Panel Clip
265WE04X10186 GE Steam Valve
267WE08X29753 GE Water Valve Harness
400WE10X30586 GE Top Panel Satin Nickel
412SIDE PANEL SATIN NICKEL RIGHT
413SIDE PANEL SATIN NICKEL LEFT
420WE13X30588 GE Rear Panel
421WE08X29689 GE Power Cord
424WE02X29691 GE Pin Guide Bushing
425WH2X1217 GE Screw Assembly
426WB01T10058 GE Screw 10-16 AB HXW 750 S N
430WE13X29740 GE Terminal Block Cover
511PANEL CLIP
800WE08X30589 GE Gas Main Harness
