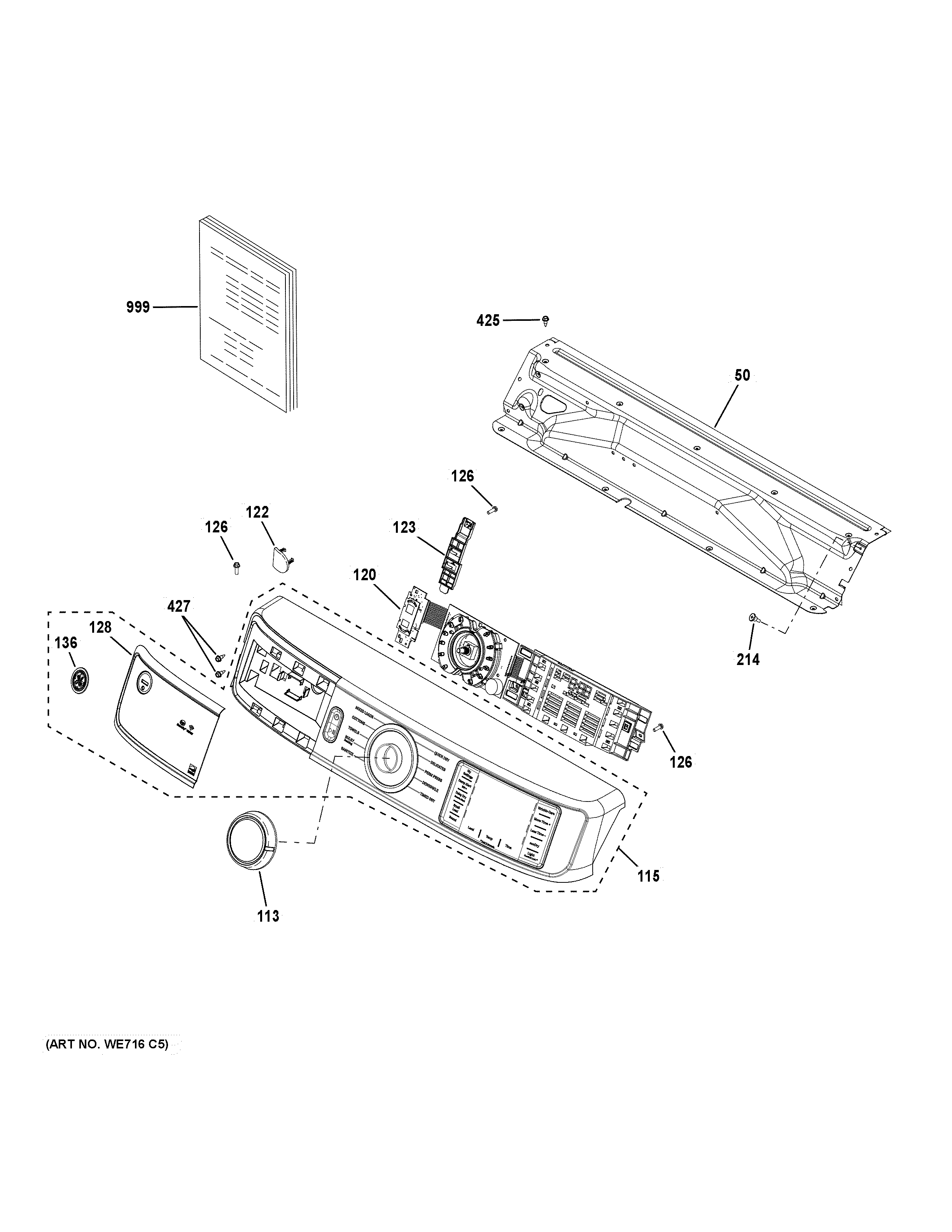

GFD65GSPV0DS CONTROLS & BACKSPLASH

GFD65GSPV0DS CONTROLS & BACKSPLASH

Written by

in

GFD65GSPV0DS CONTROLS & BACKSPLASH

Products

PositionProduct
50WE13X29585 GE Control Panel Front Bracket
113CYCLE SELECTOR KNOB
115WE13X36398 GE Dryer Dark Gray Control Panel
120USER INTERFACE BOARD BLE FL DR
122SCREW COVER DARK SLATE
123WE13X29586 GE Power/START Button Bracket
126WR01X10196 GE Refrigerator Screw 8-18 HID02
128HANDLE FACIA AND BADGE LE DARK SLATE
136GE BADGE
214SHOULDER SCREW M4
425WH2X1217 GE Screw Assembly
427WH02X31877 GE Screw 10-32 GX HXW 7/16"
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
999PM QUICK INSTALL
