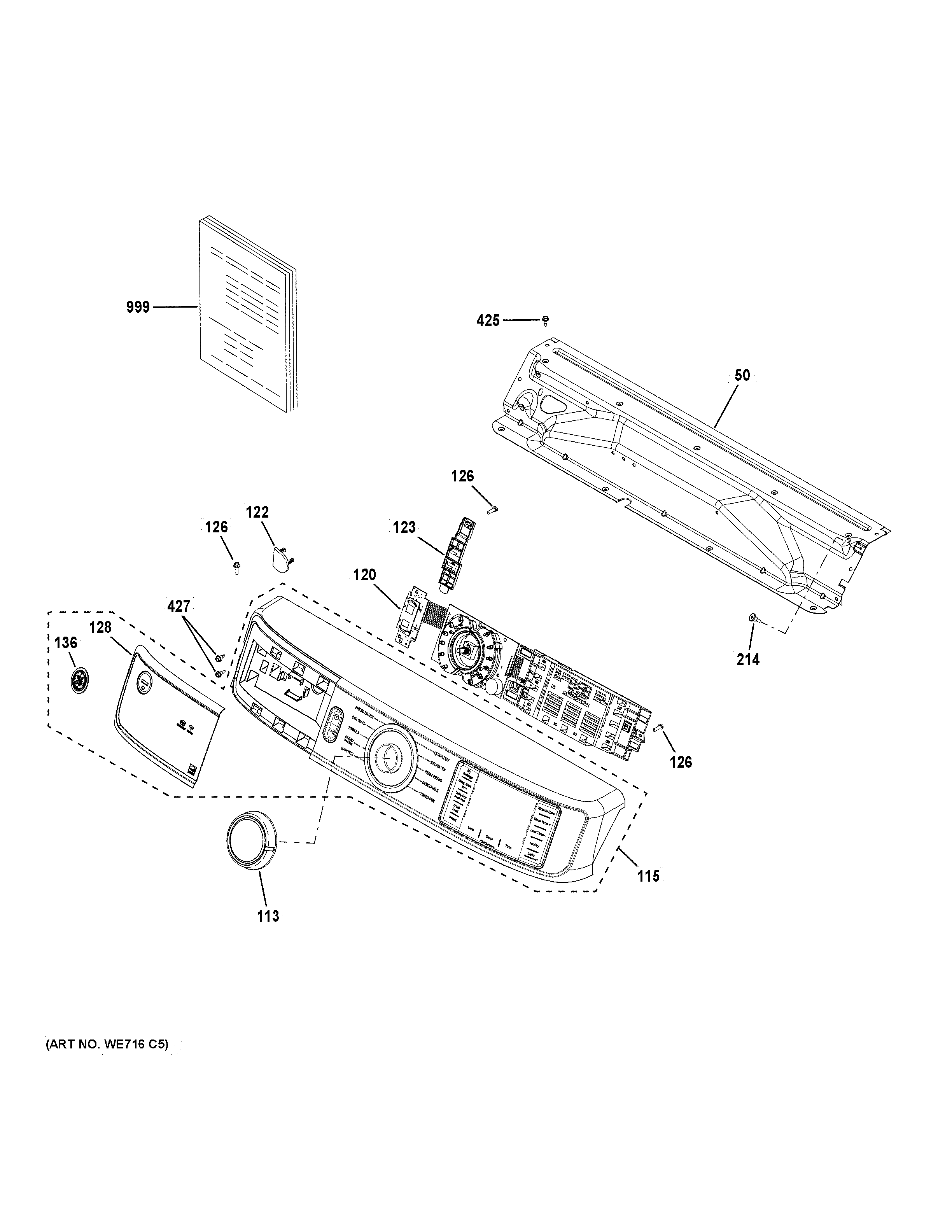

GFD65GSSN0WW CONTROLS & BACKSPLASH

GFD65GSSN0WW CONTROLS & BACKSPLASH

Written by

in

GFD65GSSN0WW CONTROLS & BACKSPLASH

Products

PositionProduct
50WE13X29585 GE Control Panel Front Bracket
113WE01X29707 GE Selector Knob
115WE13X29747 GE Control Panel White
120USER INTERFACE BOARD BLE FL DR
122WE01X29590 GE White Screw Cover
123WE13X29586 GE Power/START Button Bracket
126WR01X10196 GE Refrigerator Screw 8-18 HID02
128WH01X30841 GE Handle Facia And Bad Sh Whit
136GE BADGE
214SHOULDER SCREW M4
425WH2X1217 GE Screw Assembly
427WH02X31877 GE Screw 10-32 GX HXW 7/16"
999PM QUICK INSTALL
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
