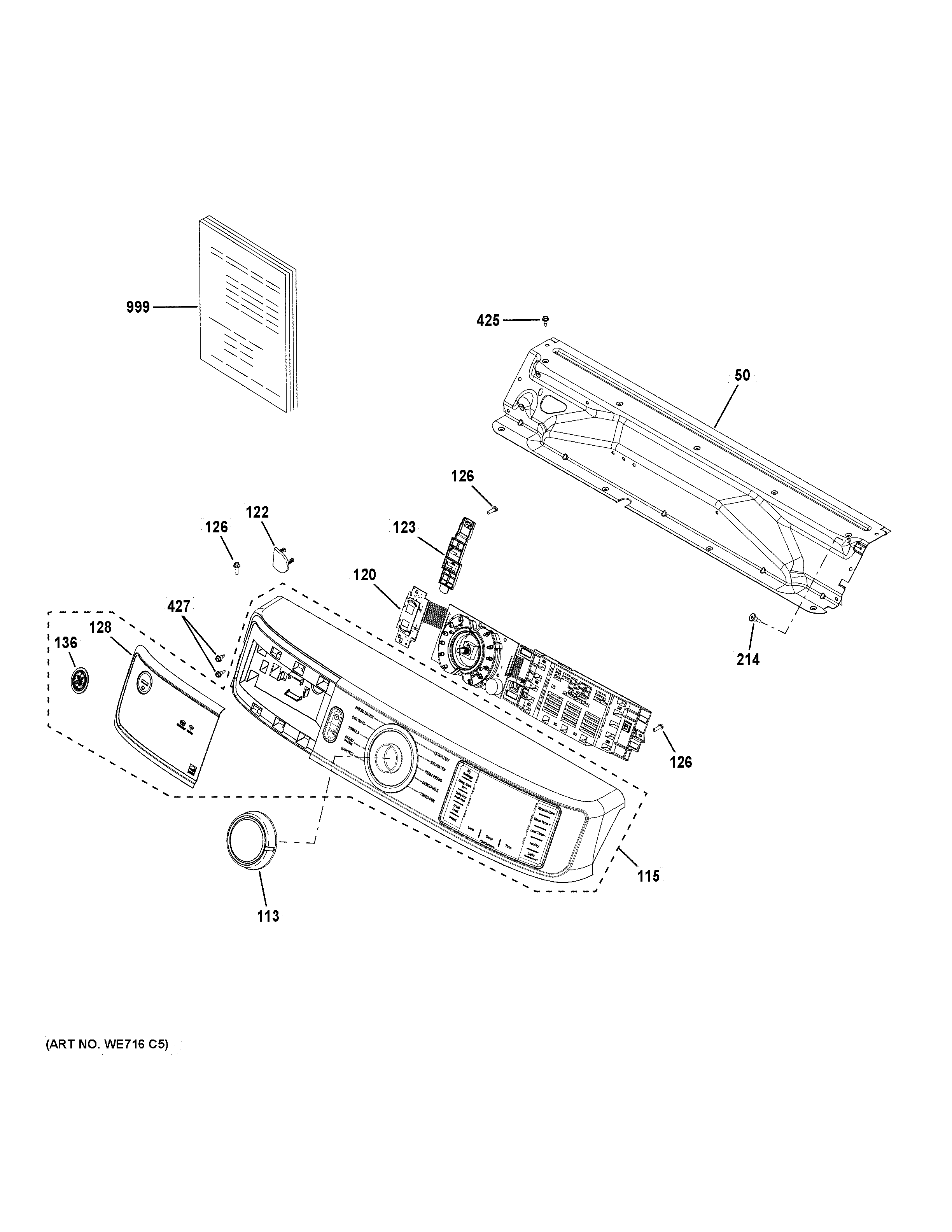

GFD85ESMN0RS CONTROLS & BACKSPLASH

GFD85ESMN0RS CONTROLS & BACKSPLASH

Written by

in

GFD85ESMN0RS CONTROLS & BACKSPLASH

Products

PositionProduct
50WE13X29585 GE Control Panel Front Bracket
113WE01X29707 GE Selector Knob
115WE22X29780 GE Control Panel Sapphire Blue
120USER INTERFACE BOARD FL DRYER
122WE01X29779 GE Screw Cover Sapphire Blue
123WE13X29586 GE Power/START Button Bracket
126WR01X10196 GE Refrigerator Screw 8-18 HID02
128WH01X30839 GE Handle Facia with IMD and Badge
136GE BADGE
214SHOULDER SCREW M4
425WH2X1217 GE Screw Assembly
427WH02X31877 GE Screw 10-32 GX HXW 7/16"
999PM QUICK INSTALL
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
